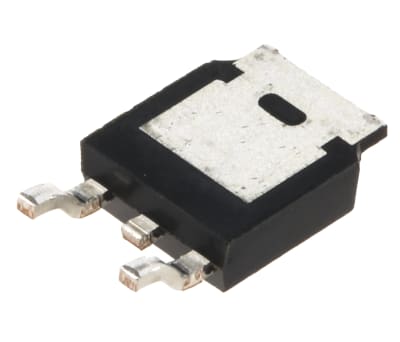

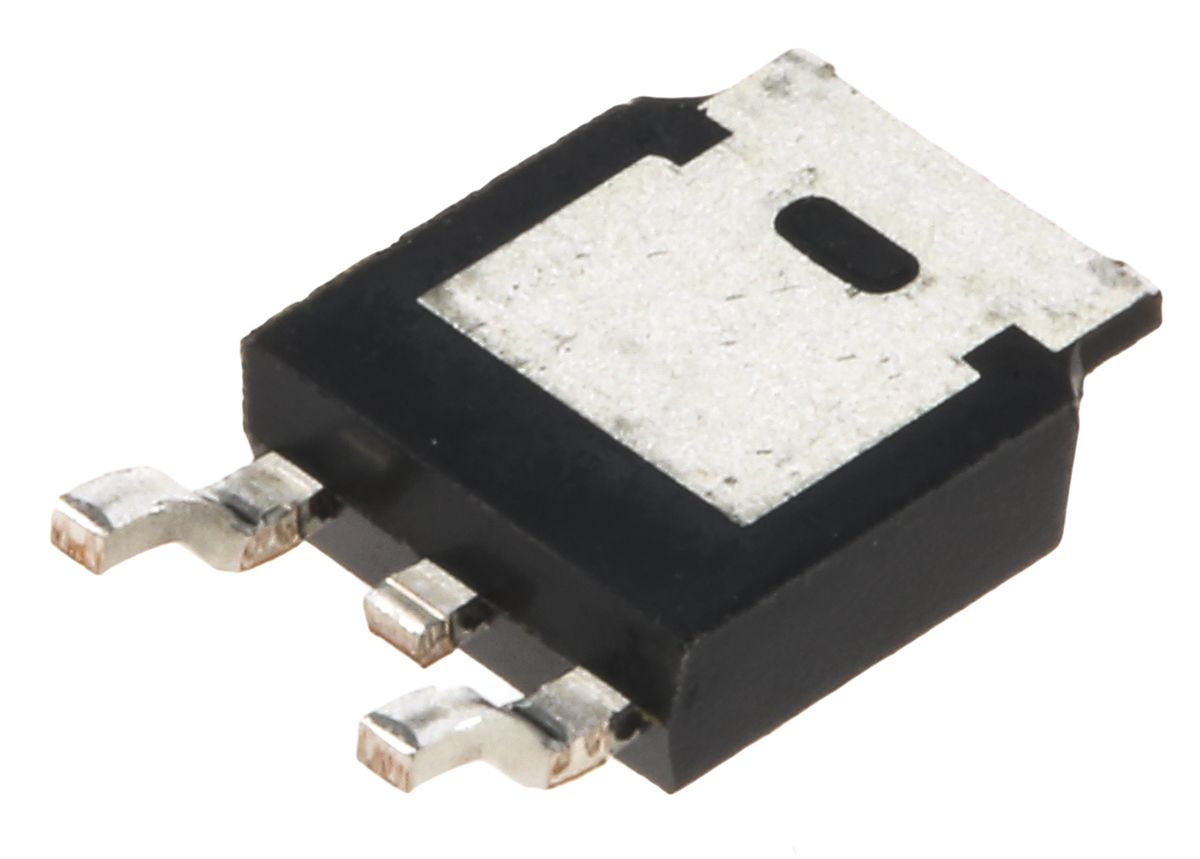

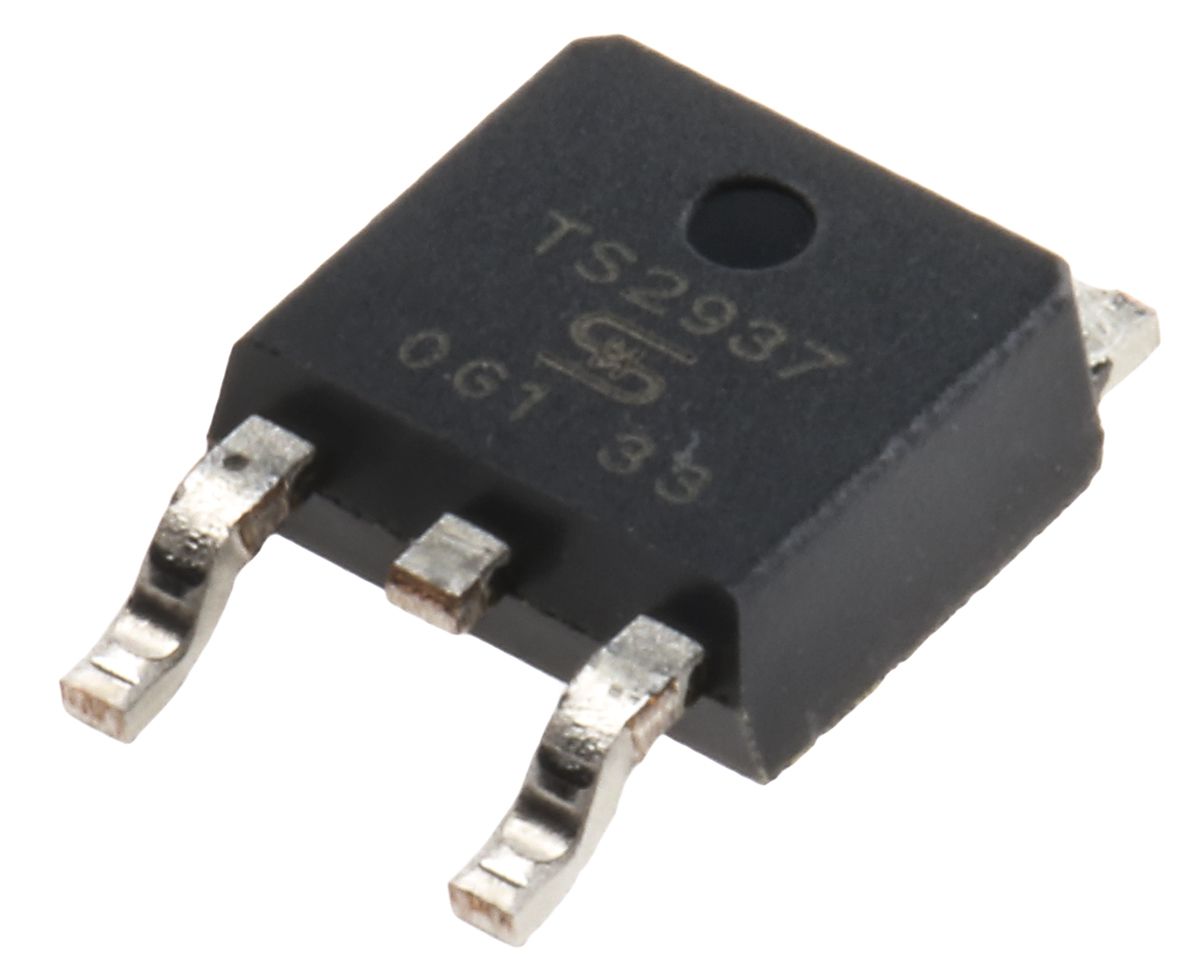

Taiwan Semiconductor TS2937CP33 ROG, 1 Low Dropout Voltage, Voltage Regulator 500mA, 3.3 V 3-Pin, TO-252
- RS Stock No.:
- 0398518
- Mfr. Prt No.:
- TS2937CP33 ROG
- Brand:
- Taiwan Semiconductor
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 0398518 |
| Product description | Taiwan Semiconductor TS2937CP33 ROG, 1 Low Dropout Voltage, Voltage Regulator 500mA, 3.3 V 3-Pin, TO-252 |
| Manufacturer / Brand | Taiwan Semiconductor |
| Manufacturer part number | TS2937CP33 ROG |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 0398518 |
| Product description | Taiwan Semiconductor TS2937CP33 ROG, 1 Low Dropout Voltage, Voltage Regulator 500mA, 3.3 V 3-Pin, TO-252 |
| Manufacturer / Brand | Taiwan Semiconductor |
| Manufacturer part number | TS2937CP33 ROG |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Apr 20, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: TW
Product Details
LDO (Low Dropout) Linear Voltage Regulators, Taiwan Semiconductor
The Low dropout or LDO is a linear voltage regulator. We have a wide range of adjustable linear LDO regulators. The LDO regulator can operate with a small input–output differential voltage. LDO voltage regulators may offer fast transient response, wide input voltage range, low quiescent current and low noise with high PSRR.
LDO (Low Dropout) Linear Voltage Regulators, Taiwan Semiconductor
Fixed Output Voltages
Specifications
| Attribute | Value |
| Brand | Taiwan Semiconductor |
| Regulator Type | Low Dropout Voltage |
| Maximum Output Current | 500 mA |
| Output Voltage | 3.3 V |
| Number of Outputs | 1 |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Accuracy | ±2 % |
| Polarity | Positive |
| Mounting Type | Surface Mount |
| Package Type | TO-252 |
| Quiescent Current | 0.2 mA |
| Pin Count | 3 |
| Output Type | Fixed |
| Dimensions | 6.65 x 5.6 x 2.4 mm |
| Height | 2.4 mm |
| Minimum Input Voltage | -18 V |
| Maximum Operating Temperature | +125 °C |
| Length | 6.65 mm |
| Maximum Input Voltage | 26 V |
| Width | 5.6 mm |
| Minimum Operating Temperature | -40 °C |
