MikroElektronika MIKROE-1894 ADC3 Click mikroBus Click Board Signal Conversion Development Kit
- RS Stock No.:
- 1360733
- Mfr. Prt No.:
- MIKROE-1894
- Brand:
- MikroElektronika
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 1360733 |
| Product description | MikroElektronika MIKROE-1894 ADC3 Click mikroBus Click Board Signal Conversion Development Kit |
| Manufacturer / Brand | MikroElektronika |
| Manufacturer part number | MIKROE-1894 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1360733 |
| Product description | MikroElektronika MIKROE-1894 ADC3 Click mikroBus Click Board Signal Conversion Development Kit |
| Manufacturer / Brand | MikroElektronika |
| Manufacturer part number | MIKROE-1894 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | May 3, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
ADC3 click mikroBUS™

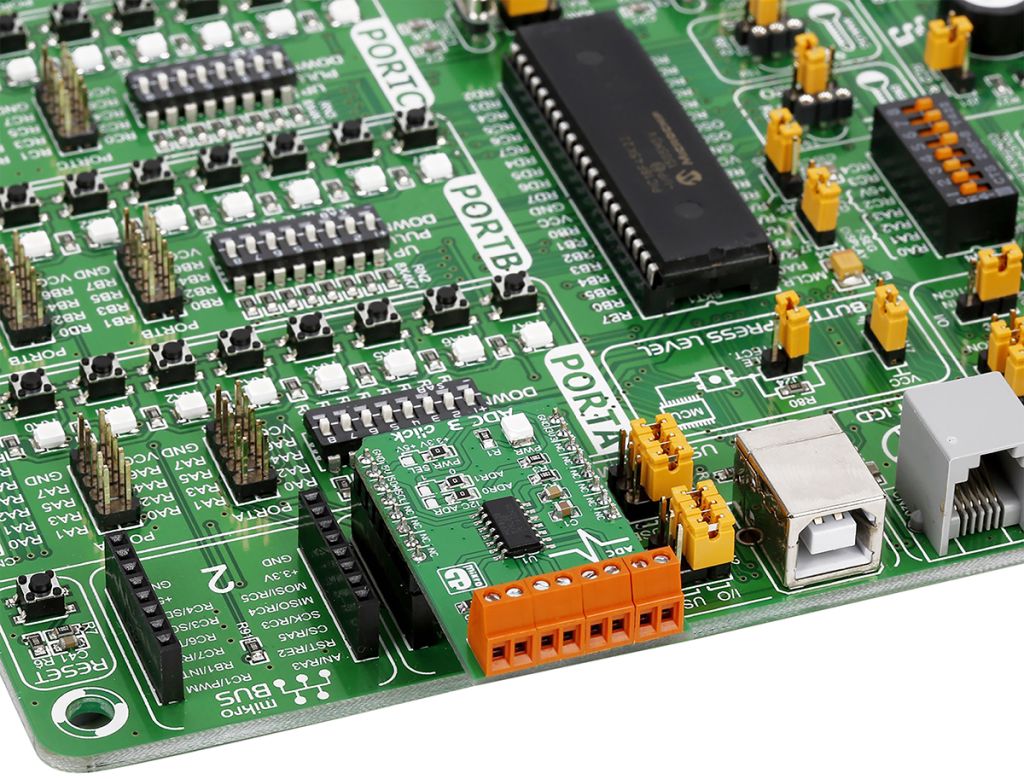

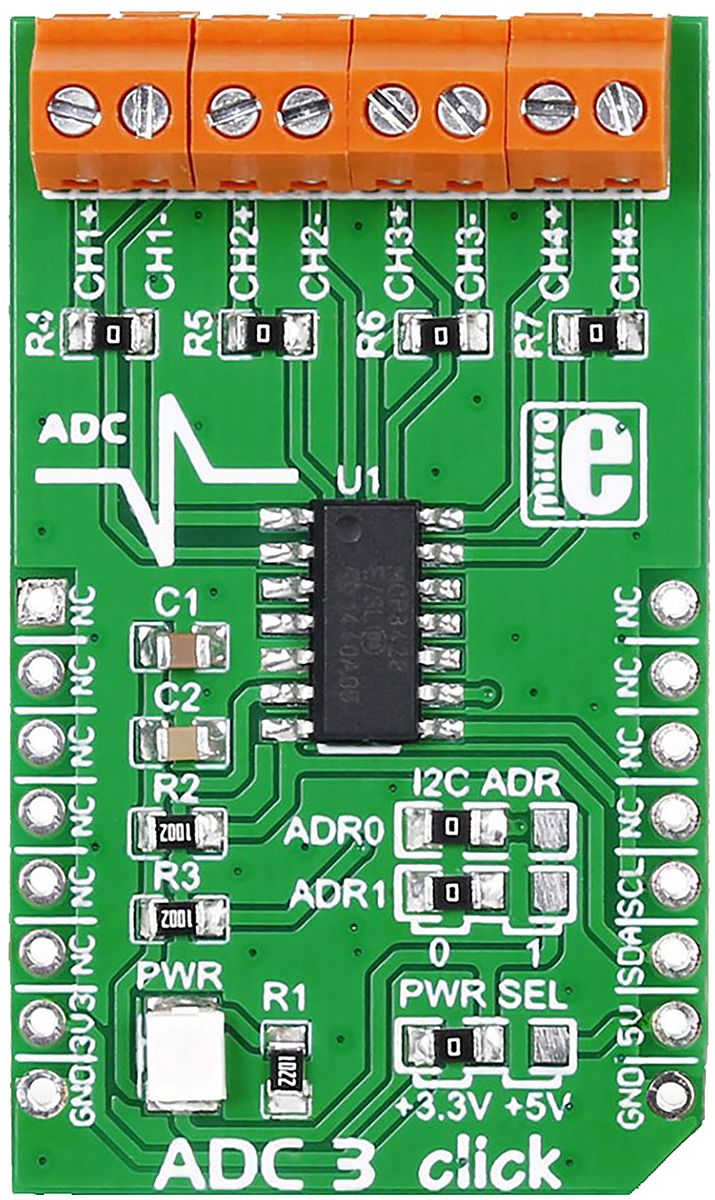

ADC3 click is a mikroBUS add-on board for analogue signal applications where high sample rate is required with high accuracy. The Microchip MCP3428 is a four channel low-noise ΔΣ Analogue-to-Digital Converter with differential inputs and up to 16 bits of resolution. The click has four pairs of screw terminals on-board, letting you access the chip’s four differential input channels.
Note
Click board comes with the header strips soldered.
Four pairs of screw terminals on-board, letting you access the four differential input channels
Programmable Data Rate of 15 Samples per Second (SPS) at 16-bits resolution
Programmable Data Rate of 60 Samples per Second (SPS) at 14-bits resolution
Programmable Data Rate of 240 Samples per Second (SPS) at 12-bits resolution
Serial data access through the I²C bus
Select the device address with an on-board jumper
3.3 V or 5 V power supply on mikroBUS socket

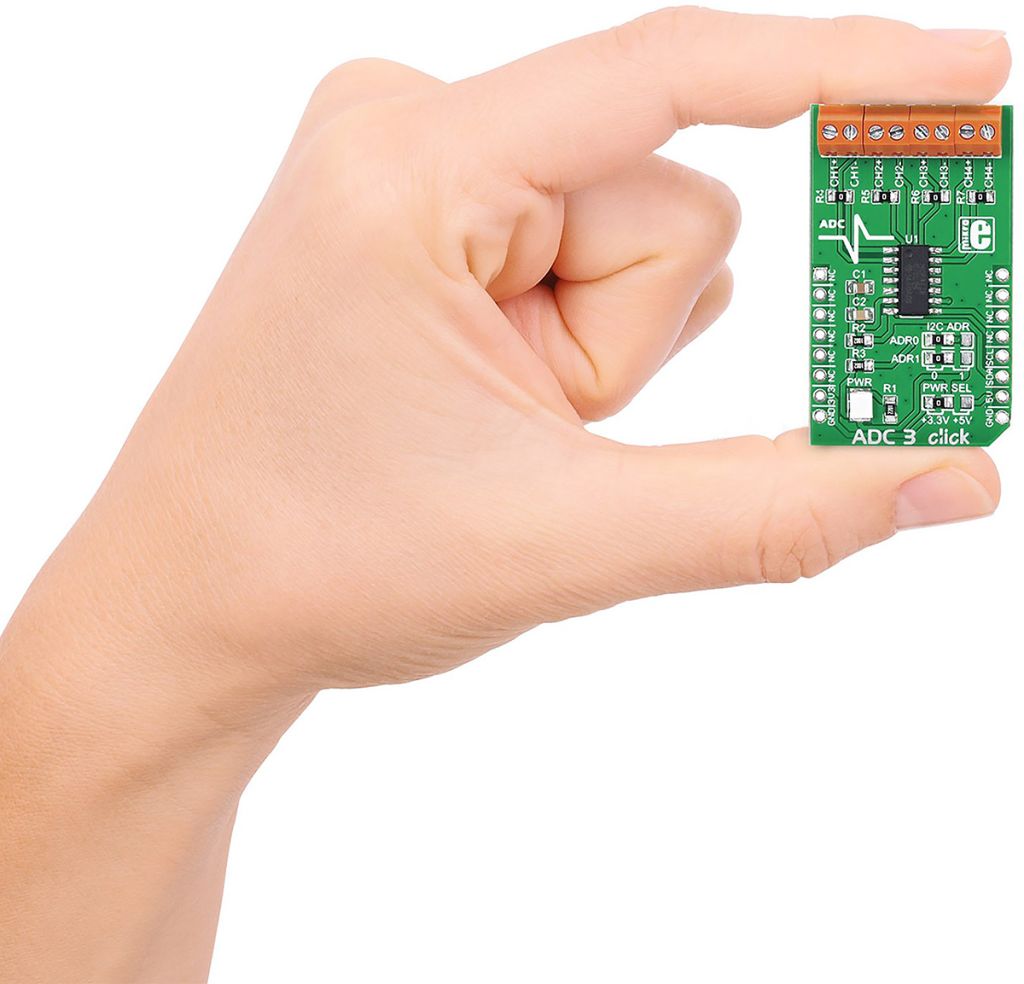

Dimensions 42.9 x 25.4 mm
Specifications
| Attribute | Value |
| Brand | MikroElektronika |
| Converter Type | ADC |
| Featured Device | MCP3428 |
| Kit Classification | mikroBus Click Board |
| Kit Name | ADC3 Click |
| Resolution | 16-bit |
