TE Connectivity Automotive Service PIDG Splices/Terminals, Plasti-Grip Terminals Crimp terminal Kit
- RS Stock No.:
- 4146633
- Mfr. Prt No.:
- 725929
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 4146633 |
| Product description | TE Connectivity Automotive Service PIDG Splices/Terminals, Plasti-Grip Terminals Crimp terminal Kit |
| Manufacturer / Brand | TE Connectivity |
| Manufacturer part number | 725929 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 4146633 |
| Product description | TE Connectivity Automotive Service PIDG Splices/Terminals, Plasti-Grip Terminals Crimp terminal Kit |
| Manufacturer / Brand | TE Connectivity |
| Manufacturer part number | 725929 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Apr 24, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: DE
Product Details
Crimp Kits - TE Connectivity
TE Connectivity Crimp Terminal and Splice Automotive Service Kit 1
This crimp terminal and splice kit from TE Connectivity contains some of the most popular terminals and splices for automotive repair applications. It also comes with a SUPER CHAMP II crimp tool for reliable crimp connections.

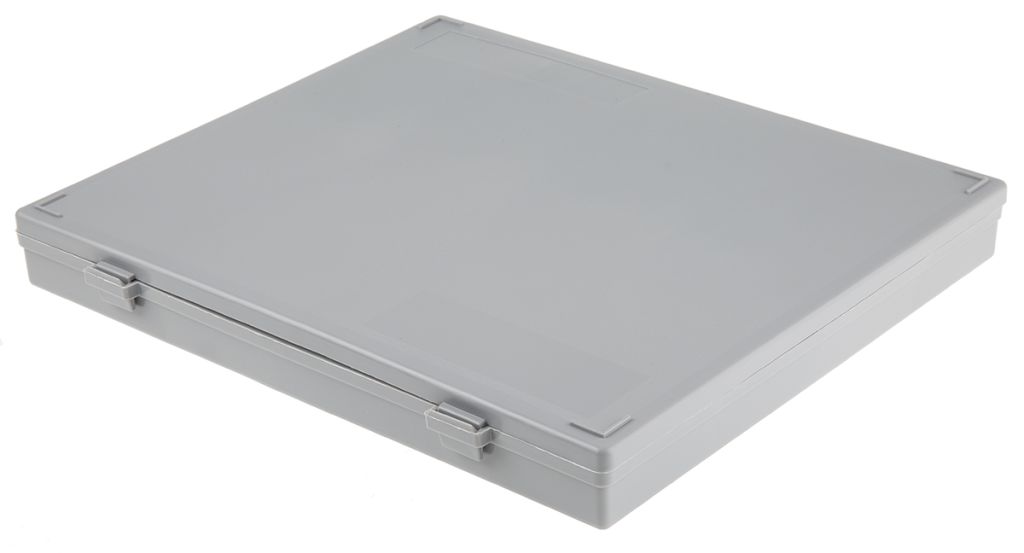

The kit comes in a rugged plastic case which stores multiple different types of crimps and splices, and is ideal for keeping in your workshop or transporting to jobs on-site.
The case is divided into sections and each terminal type has its own compartment. There is also a compartment for the SUPER CHAMP II crimp tool (120-5313).
The best part is, if you run out of an item, this reusable case can be restocked with all your favourite pieces.
What is included?

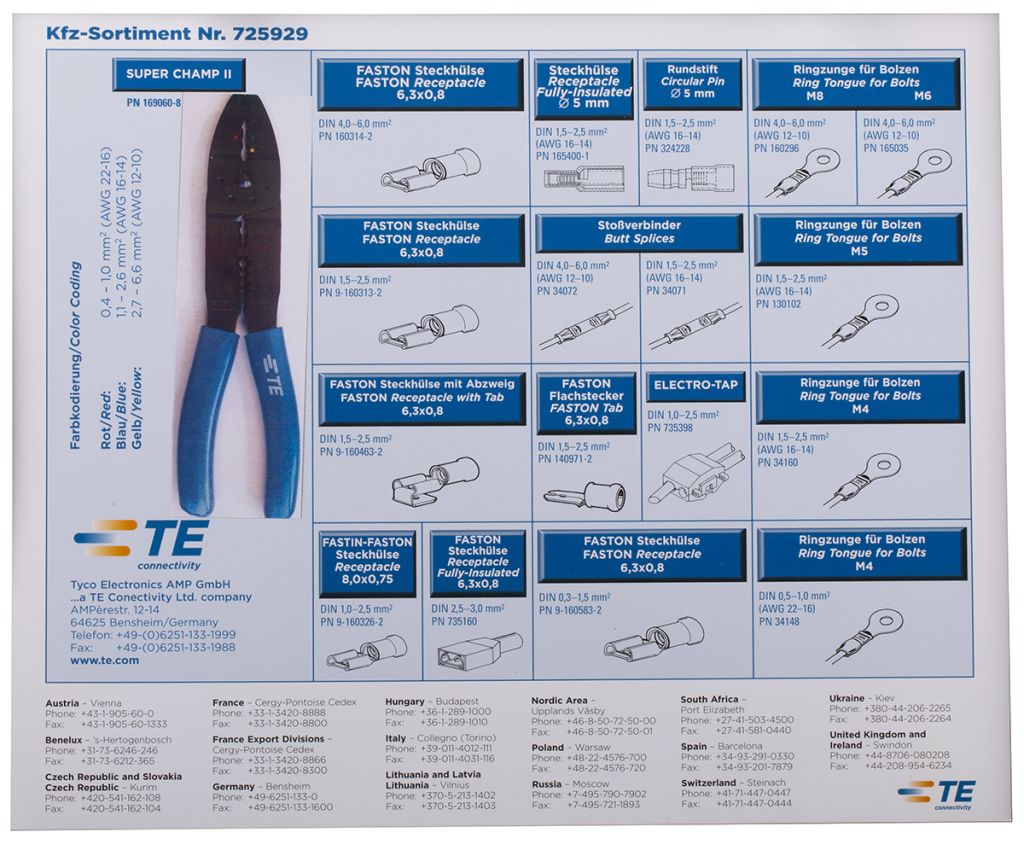

The kit contains a range of butt splices, receptacles, piggybacks, ring terminals and spade terminals. Information on the pieces and their part numbers can be found in the table below.
Specifications
| Attribute | Value |
| Brand | TE Connectivity |
| Type | Automotive Service |
| Kit Contents | Butt Splice, Electrotap, Female Bullet, Male Bullet, Male Receptacle, Piggyback, Pin, Receptacle, Ring, Superchamp II Tool |
| Connector Type | PIDG Splices/Terminals, Plasti-Grip Terminals |
