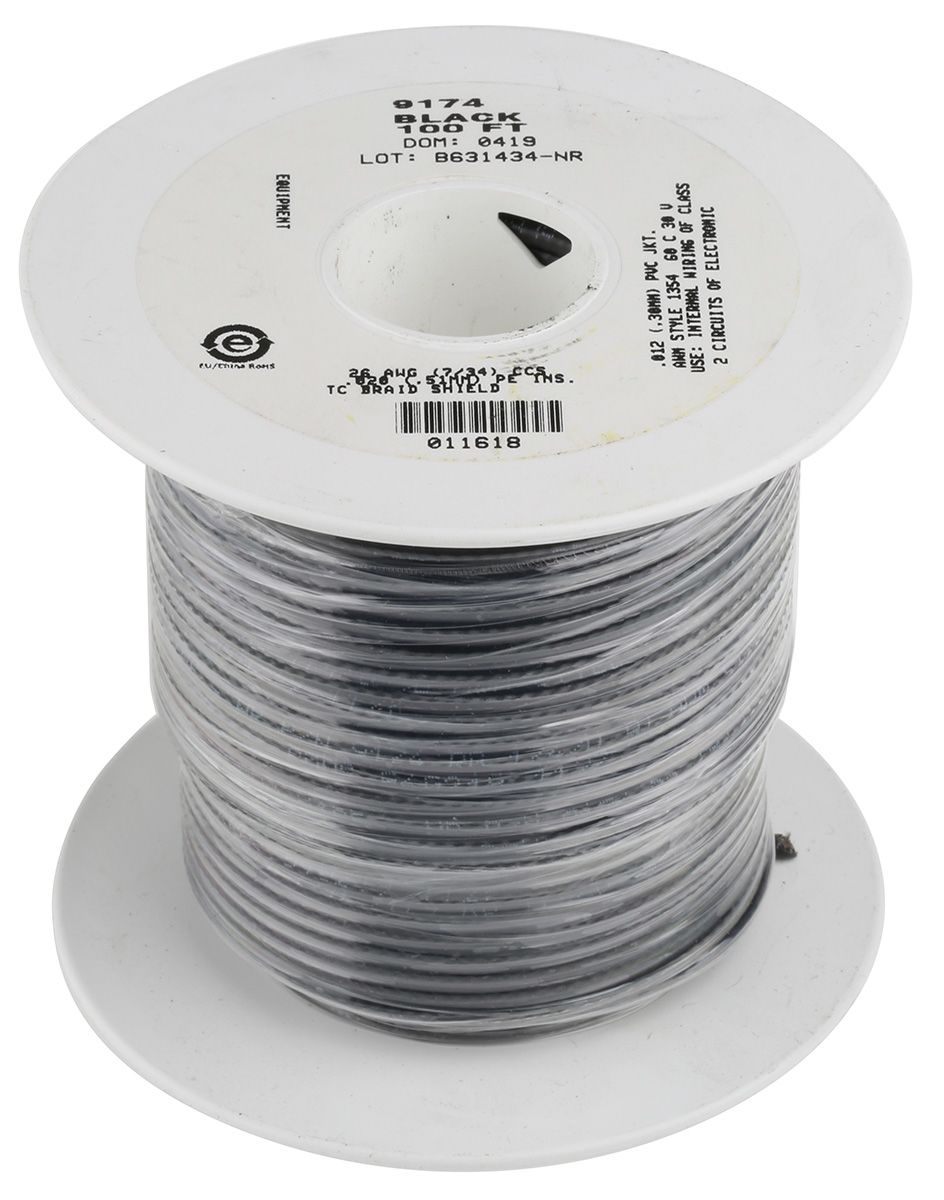

Alpha Wire Unterminated to Unterminated Coaxial Cable, RG174/U, 50 Ω, 30m, Unterminated

RS Stock No.:
1119199
Mfr. Prt No.:
9174 BK005
Brand:
Alpha Wire

Technical Reference

Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 1119199
Product description Alpha Wire Unterminated to Unterminated Coaxial Cable, RG174/U, 50 Ω, 30m, Unterminated
Manufacturer / Brand Alpha Wire
Manufacturer part number 9174 BK005

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Mar 28, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: US


Product Details

Coaxial cable RG 174/U

The Alpha Wire RG 174/U MIL-C and UL 1354 approved cable has been designed to broadcast video transmission at the highest quality.

APPROVALS :   MIL-C 17D and UL 1354


Specifications

Attribute Value
Brand Alpha Wire
Reel Length 30 m
Attenuation 48 dB/100ft @ 1GHz, 6 dB/100ft @ 50MHz
Connector A Unterminated
Outer Diameter 2.59 mm
Characteristic Impedance 50 Ω
Length 30 m
Coaxial Type RG174/U
Connector B Unterminated
Sheath Colour Black
Terminated/Unterminated Unterminated
Conductor Strand Type Stranded
Operating Temperature Range -40 → +80 °C
Series MEC COAXIAL
Size of Strands 34 AWG
Capacitance 101.024 pF/m
Maximum Operating Temperature +80 °C
Sheath Material Polyvinyl Chloride PVC
Number of Strands 7
Conductor Material Bare Copper
Insulation Material PE
Velocity ratio 66 %
Minimum Operating Temperature -40 °C
Manufacturer Part No. 9174 BK005
Core Strands 7/34
Checking stock...
IDR
1,242,736.72
Out of stock
Price Reel (1 Reel of 30 Metres)
Reel(s)Per Reel(IDR)Per Unit(IDR)
11,242,736.7241,424.56
*price per unit indicative
