Schneider Electric Harmony XB5 Blanking Plug for XB4 Series
- RS Stock No.:
- 6102764
- Mfr. Prt No.:
- ZB5SZ3
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 6102764 |
| Product description | Schneider Electric Harmony XB5 Blanking Plug for XB4 Series |
| Manufacturer / Brand | Schneider Electric |
| Manufacturer part number | ZB5SZ3 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 6102764 |
| Product description | Schneider Electric Harmony XB5 Blanking Plug for XB4 Series |
| Manufacturer / Brand | Schneider Electric |
| Manufacturer part number | ZB5SZ3 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Apr 28, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FR
Product Details

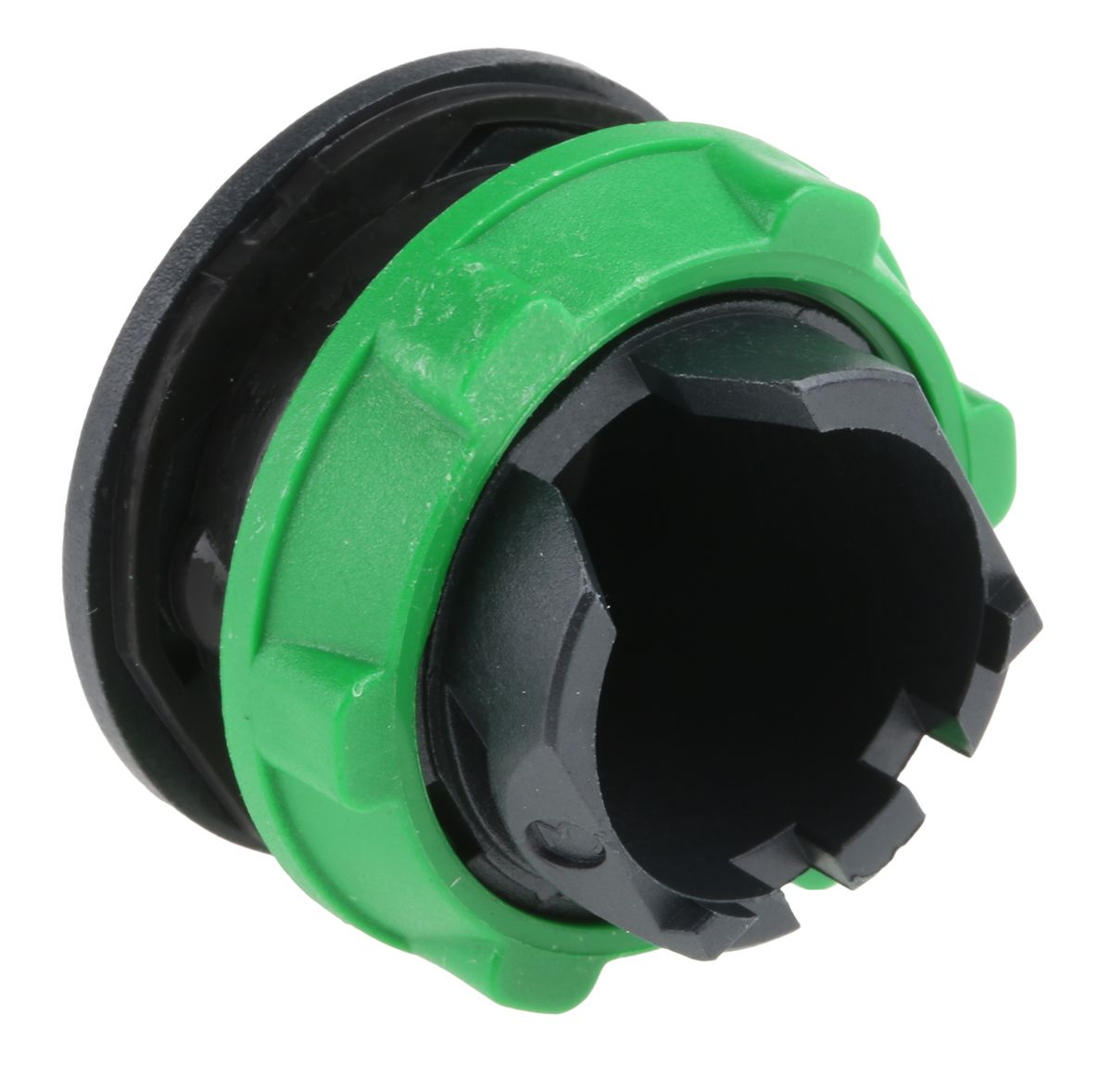

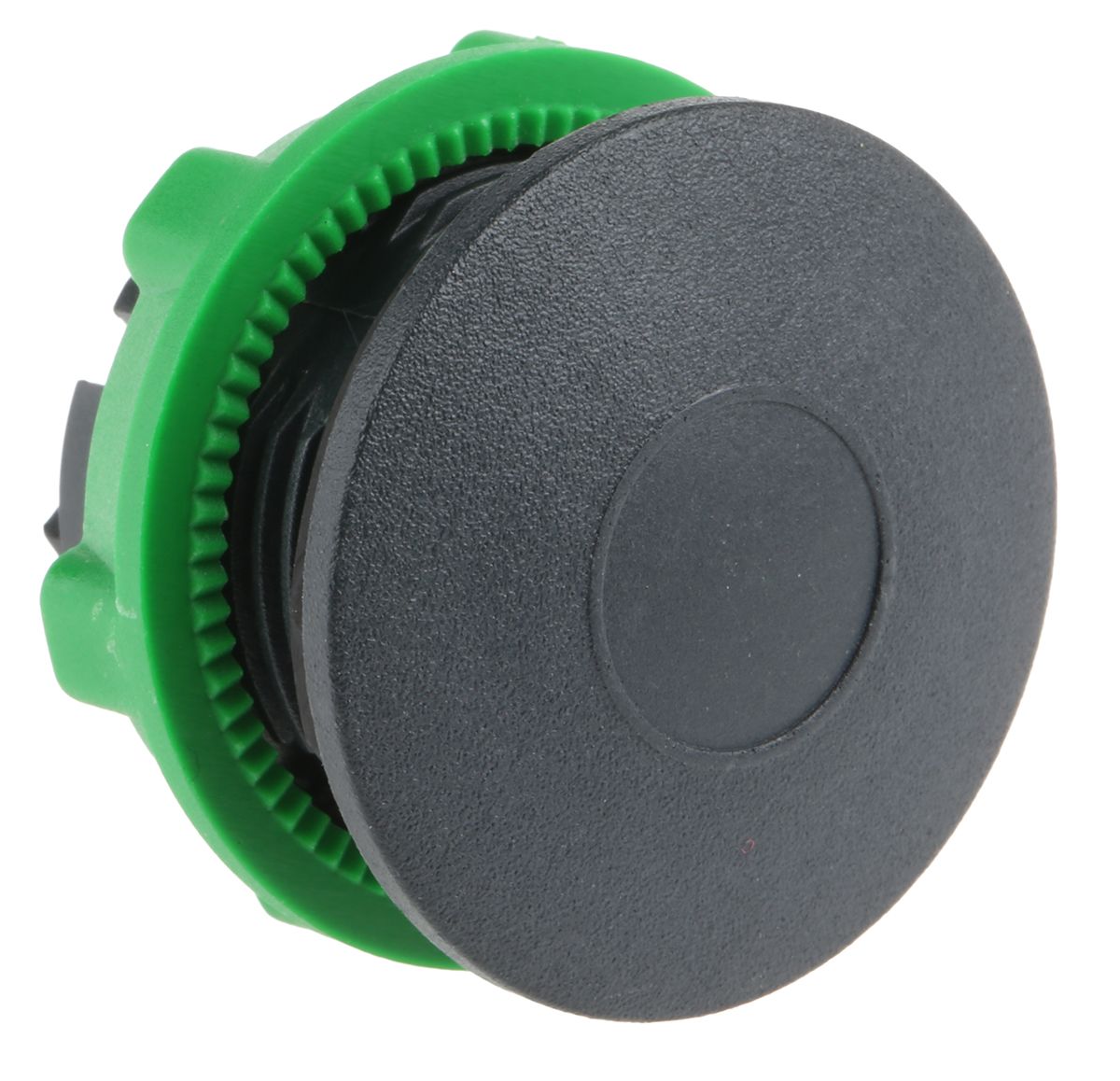

Schneider Electric Blanking Plug - ZB5SZ3
Schneider Electrics round blanking plug is predominantly used as an installation accessory, it forms part of the Harmony XB4 series and is compatible with the Harmony XB4 and XB5 series.
Features & Benefits
- The plug has been created and designed for a Ø22 hole
- features a flush operator profile
- Aesthetically pleasing black finish
- Comprised of a strong and sturdy plastic material
- Rounded shape
What are blanking plugs used for?
A blanking plug is commonly referred to as a hole plug, they are ideal for covering wiring outlets, access holes in production and for blocking off unnecessary holes in a wall or panel. This blanking plug is more specifically designed to fit to a pushbutton unit when no function is needed for the machine to operate. User's will commonly find the plug within an industrial environment.
Specifications
| Attribute | Value |
| Brand | Schneider Electric |
| For Use With | XB4 Series |
| Series | Harmony XB5 |
| Accessory Type | Blanking Plug |
