Norgren Pneumatic Roundline Cylinder 32mm Bore, 100mm Stroke, RT/57210/M/25 Series, Double Acting

RS Stock No.:
2084482
Mfr. Prt No.:
RT/57232/M/100
Brand:
Norgren

Technical Reference


Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 2084482
Product description Norgren Pneumatic Roundline Cylinder 32mm Bore, 100mm Stroke, RT/57210/M/25 Series, Double Acting
Manufacturer / Brand Norgren
Manufacturer part number RT/57232/M/100

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Mar 29, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: DE


Product Details

Cylinders

Note

Outward Thrust and Return Thrust or Pull values stated at 6 bar.

Very compact - approximately one third shorter than VDMA/ISO
Double acting with cushioning
Magnetic piston as standard

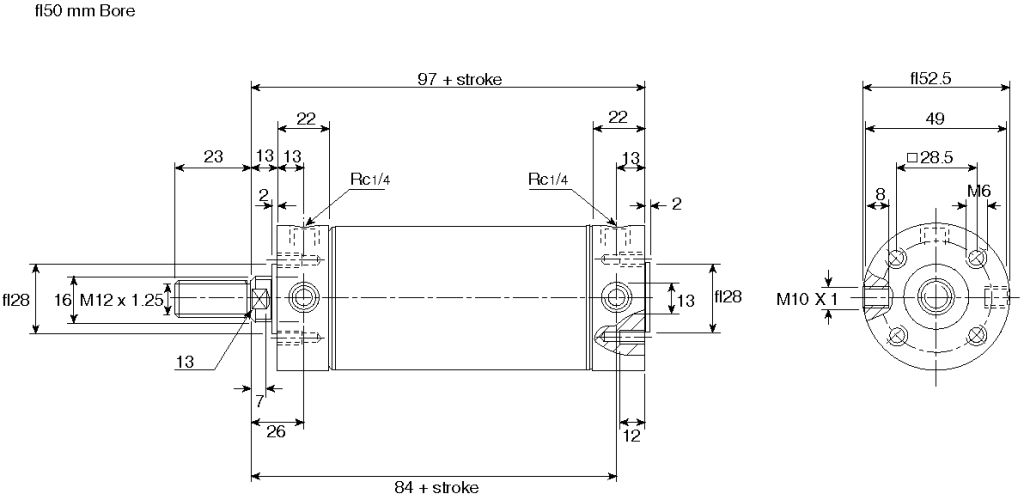

L208439-01L208441-01

Specifications

Attribute Value
Brand Norgren
Manufacturer Series RT/57210/M/25
Action Double
Bore 32 mm
Stroke 100 mm
Maximum Operating Pressure 10 bar
Cushioning Type Buffer
Dimensions 33.5 (Dia.) x 193 mm
Maximum Operating Temperature +80 °C
Diameter 33.5 mm
Length 193 mm
Minimum Operating Temperature -10 °C
