Fluke 9100S/RS-A-256 Temperature Calibrator
- RS Stock No.:
- 0537026
- Mfr. Prt No.:
- 9100S/RS-A-256
- Brand:
- Fluke
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 0537026 |
| Product description | Fluke 9100S/RS-A-256 Temperature Calibrator |
| Manufacturer / Brand | Fluke |
| Manufacturer part number | 9100S/RS-A-256 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 0537026 |
| Product description | Fluke 9100S/RS-A-256 Temperature Calibrator |
| Manufacturer / Brand | Fluke |
| Manufacturer part number | 9100S/RS-A-256 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Apr 20, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: US
Product Details
Fluke 9100 Series Drywell Heat Sources

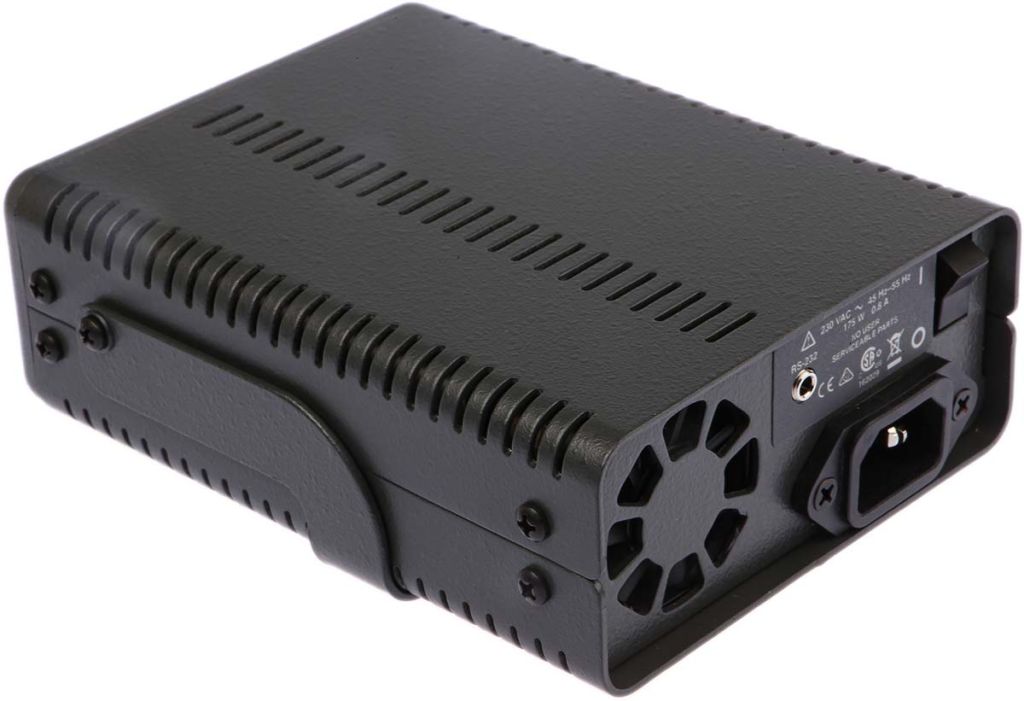

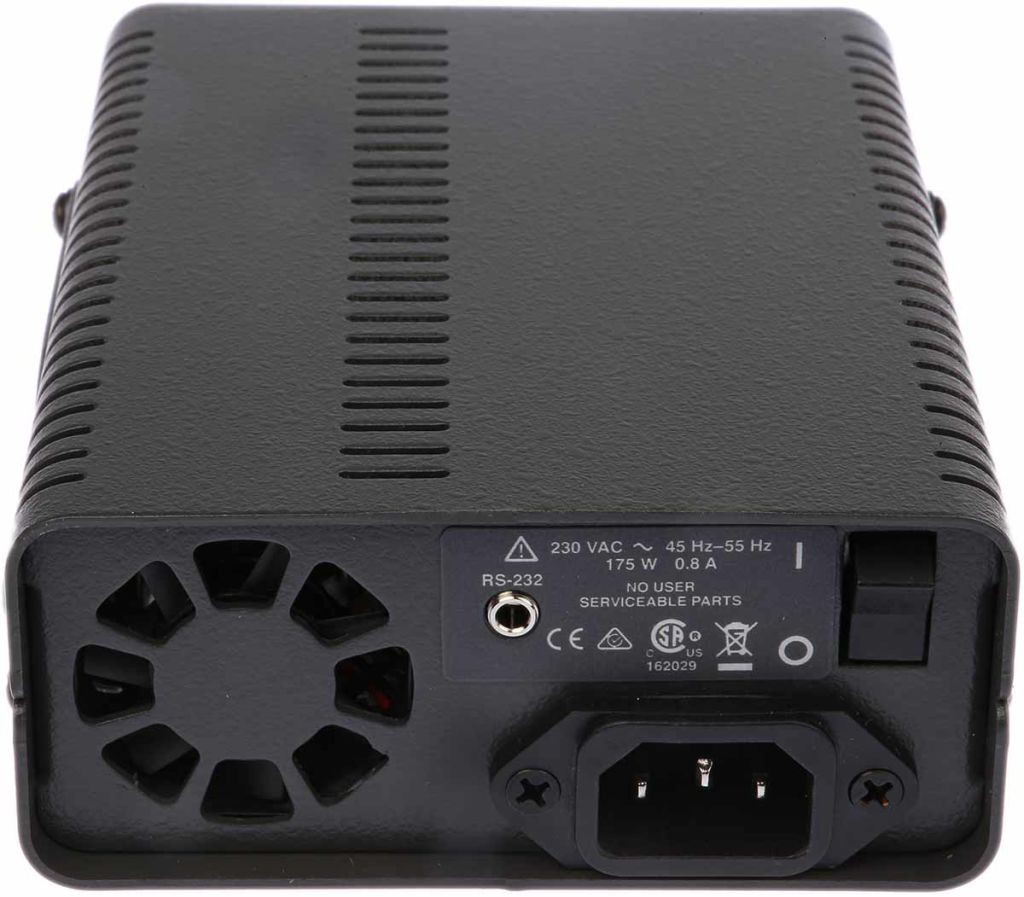

Fluke 9100S Hand Held Temperature Drywell
A drywell heat source offering a combination of extreme portability and good performance to meet the requirements associated with high speed, high volume industrial calibrations in a shop floor environment. Use the instruments independently or together to make fast zero and span calibrations of temperature sensors.
Note
For 9100S carry case see stock no. 537-044
SUPPLIED_WITH : Power Cord, User's Guide with Report of Calibratio
Drywell for checking RTDs, thermocouples, and small bimetal thermometers in the field
Fast and easy calibrations of temperature sensors
Temperature range 35°C to 375°C, expandable to –10 °C to 375 °C when used with a 9102S drywell (see stock no 537-048)
Direct interface to the Fluke 744 Documenting Process Calibrator
Multiple sized sensor holes to accept a wide range of temperature sensor diameters
Specifications
| Attribute | Value |
| Brand | Fluke |
| Width | 125 mm |
| Length | 150 mm |
| R Type Thermocouple Minimum Temperature | 0.25 °C |
| Dimensions | 150 x 125 x 57 mm |
| Best Accuracy | 0.25 °C |
| Resolution | 0.1 °C |
| Calibrator Type | Drywell Calibrator |
| Height | 57 mm |
| Model Number p | 9100S |
| Weight | 1.1 kg |
| Temperature Scale | Centigrade, Fahrenheit |
| Thermocouple Type | RTD |
