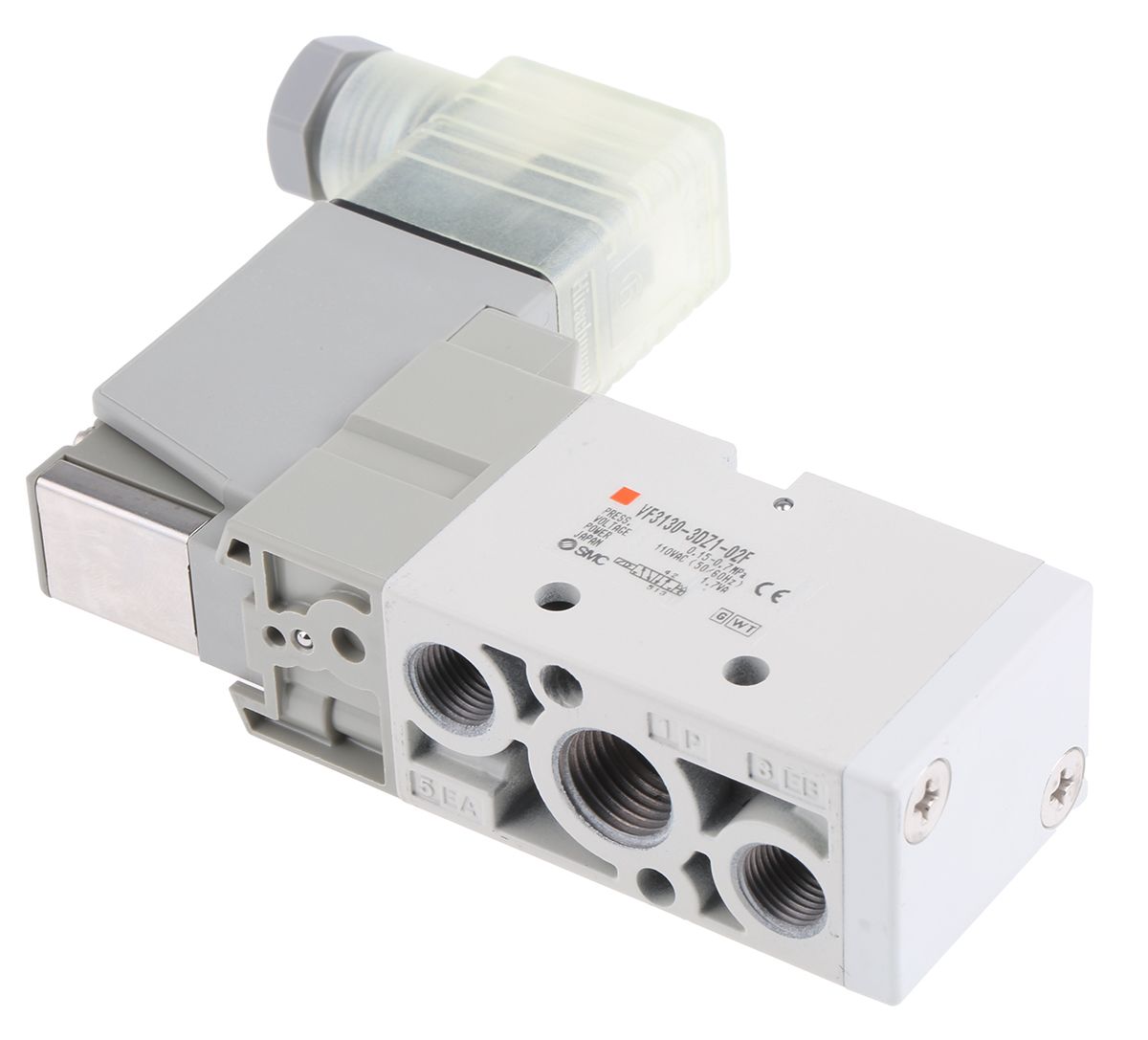

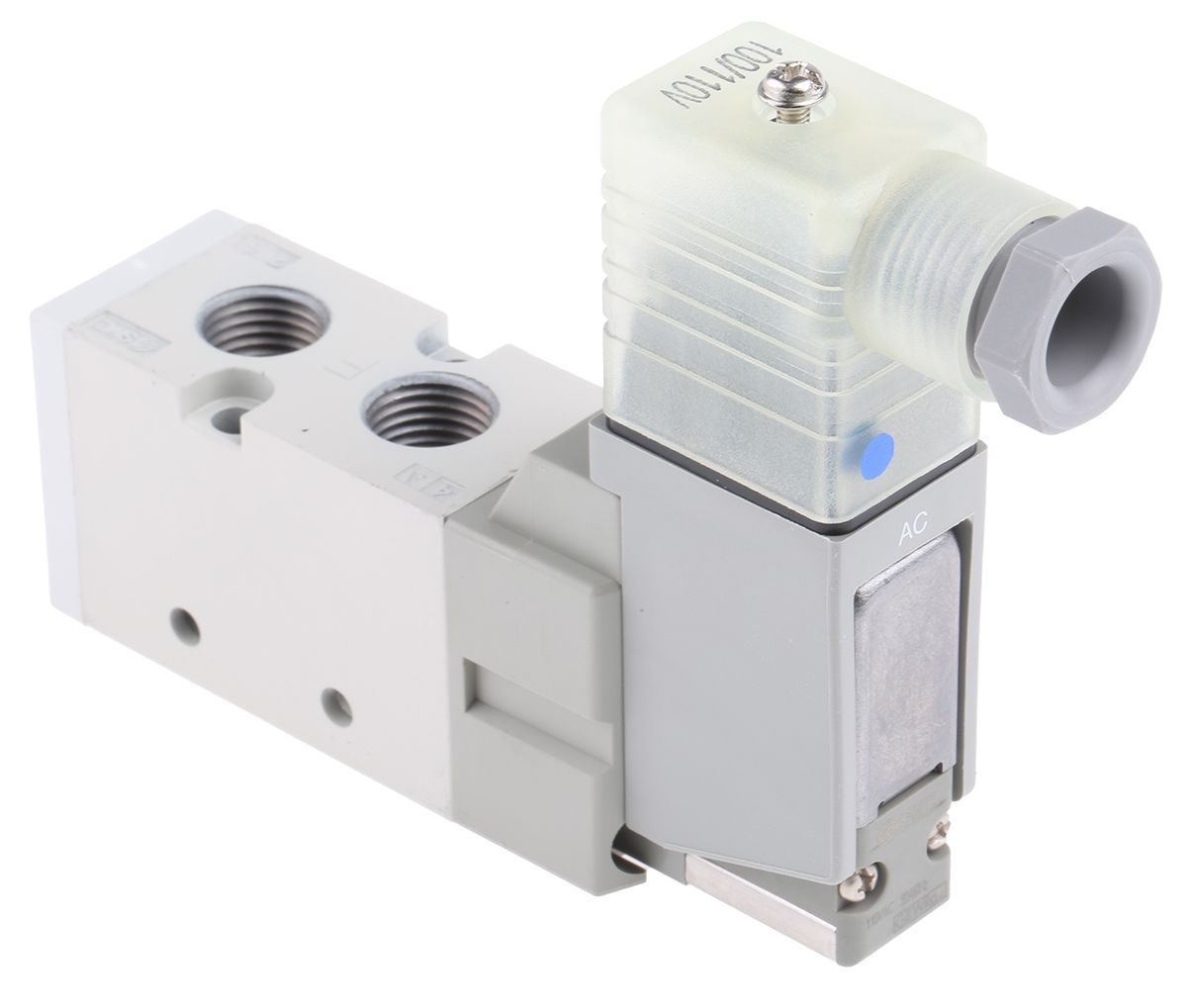

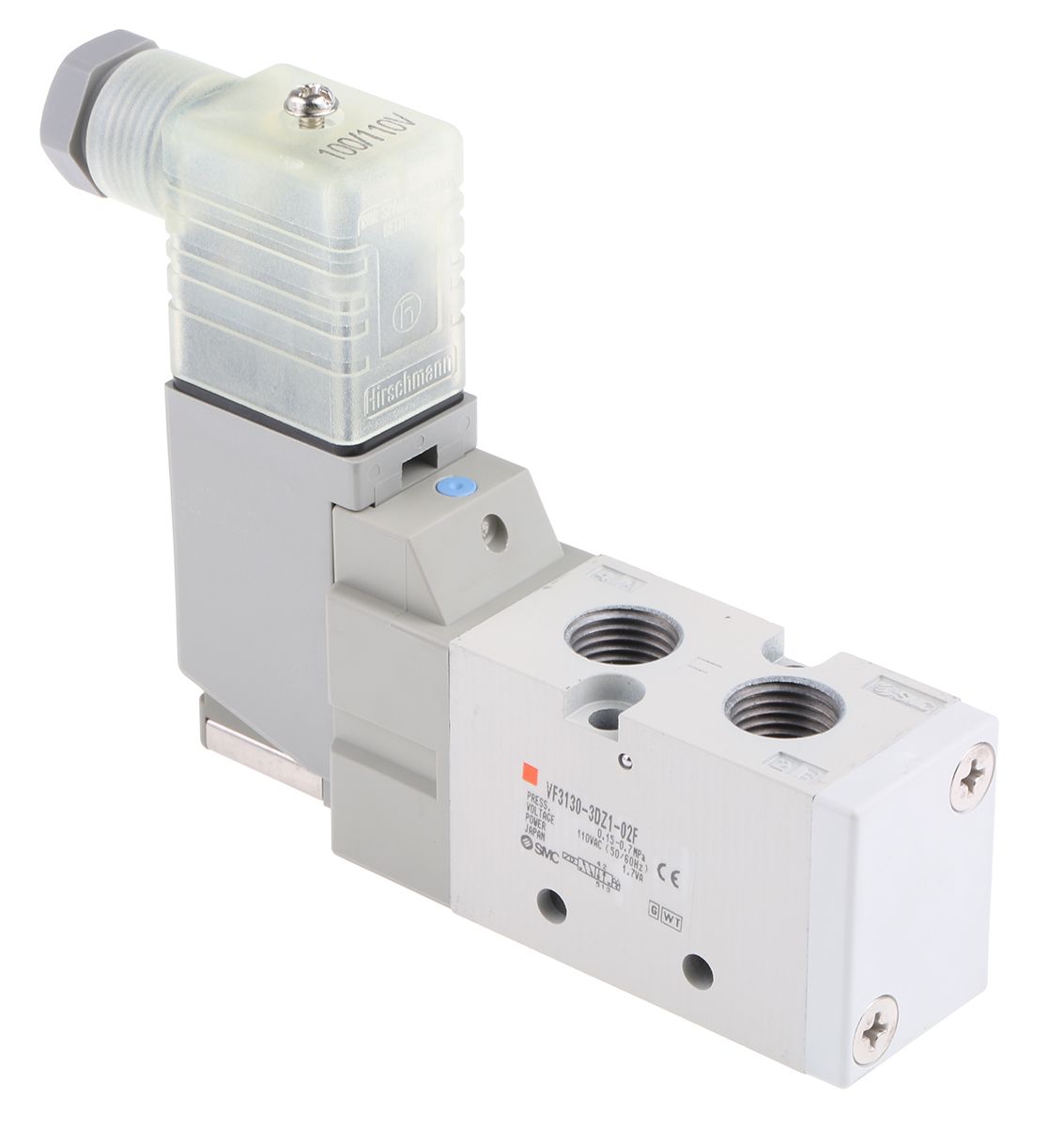

SMC 5/2 Pneumatic Solenoid Valve – Solenoid/Spring G 1/4 VF3000 Series 110→120V ac
- RS Stock No.:
- 0723719
- Mfr. Prt No.:
- VF3130-3DZ1-02F
- Brand:
- SMC
Technical Reference
- Contains SVHC - Benzyl butyl phthalate (BBP) - CAS No. 85-68-7
- Contains SVHC - Bis(2-ethylhexyl)phthalate (DEHP) - CAS No. 117-81-7
- Contains SVHC - Dibutyl phthalate (DBP) - CAS No. 84-74-2
- Datasheet
- Datasheet
- Series VF3000 5 Port Pilot Type Solenoid Valves Specifications & Dimensional Data Sheet
- VF3130-3DZ1-02F-Datasheet
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 0723719 |
| Product description | SMC 5/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/4 VF3000 Series 110→120V ac |
| Manufacturer / Brand | SMC |
| Manufacturer part number | VF3130-3DZ1-02F |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Apr 29, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: JP
Product Details
Specifications
| Attribute | Value |
| Brand | SMC |
| Manufacturer Series | VF3000 |
| Mounting Style | Stand-Alone |
| Function | 5/2 |
| Connection Port Thread | G 1/4 |
| Actuation Type | Solenoid/Spring |
| Solenoid Fitted | Yes |
| Body Material | Die Cast Aluminium |
| Maximum Flow Rate | 981 NL/min |
| Solenoid Voltage | 110→120 V ac |
| Solenoid Power Consumption | 5.6 VA |
| Minimum Operating Pressure | 0.15 MPa |
| Minimum Operating Temperature | -10 °C |
| Maximum Operating Temperature | +50 °C |
| Thread Size | 1/4 in |
| Maximum Operating Pressure | 0.9 MPa |
| Thread Standard | G |
| Number of Ports | 5/2 |
