Parker Hydraulic Pressure Gauge Isolation Valve, GI1414, G 1/4 Female

RS Stock No.:
1962729
Mfr. Prt No.:
GI1414
Brand:
Parker

Technical Reference


Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 1962729
Product description Parker Hydraulic Pressure Gauge Isolation Valve, GI1414, G 1/4 Female
Manufacturer / Brand Parker
Manufacturer part number GI1414

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Mar 29, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132


Product Details

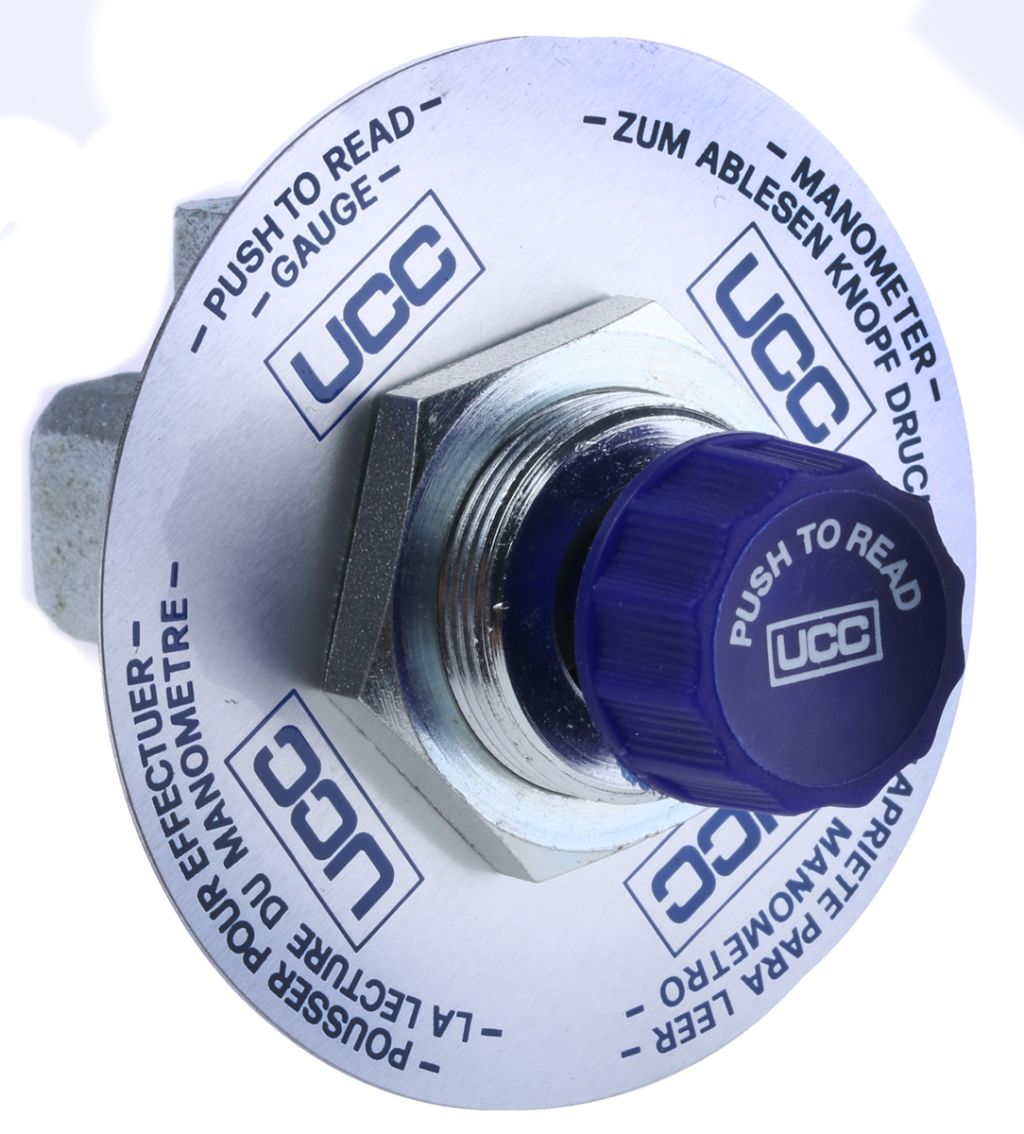

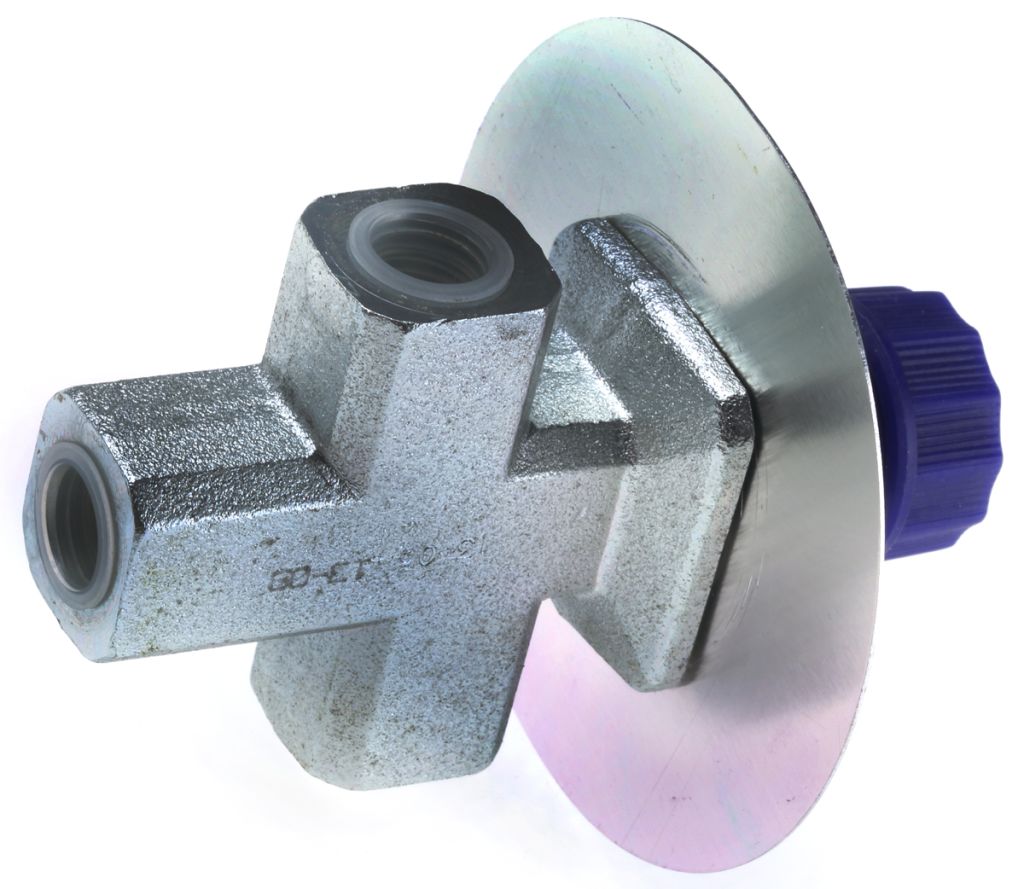

Pressure Gauge Isolator Valve

The single station gauge isolator valve by Parker has been designed to prevent pressure gauge damage and extend gauge life.
When installed between gauge and pressure line, it protects the pressure gauge from continuous hydraulic pressure, surges or shock loads.
Operated by a simple push-to-read button which, when released, automatically drains residual pressure back through the tank port.

Features and Benefits

• Cast iron and steel body
• Mounting hole 31 mm diameter
• 0.90 Kg
• Push to read type
• G port size
• 350 bar

L196272-01L196272-02

Specifications

Attribute Value
Brand Parker
Body Material Cast Iron, Steel
Thread Diameter 1/4 in
Connection Port Thread G 1/4 Female
Maximum Operating Pressure 350 bar
Thread Standard G
Thread Gender Female
Checking stock...
IDR
3,685,939.49
Out of stock
Price Each
Unit(s)Per Unit(IDR)
13,685,939.49
*price per unit indicative
