Norgren V07 Pressure Relief Valve G 1/4, V07-200-NNLG

RS Stock No.:
3989114
Mfr. Prt No.:
V07-200-NNLG
Brand:
Norgren

Technical Reference


Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 3989114
Product description Norgren V07 Pressure Relief Valve G 1/4, V07-200-NNLG
Manufacturer / Brand Norgren
Manufacturer part number V07-200-NNLG

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Jul 20, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: GB


Product Details

V07 Pressure Relief Valve

Protects compressed air systems from over pressurisation
Low torque push-to-lock adjustment knob
Compact design
Panel mount dimensions (30mm dia. hole 6mm panel thickness maximum) or bracket mounting
Relief pressure adjustment range 0.3 to 9 bar
Zinc alloy body

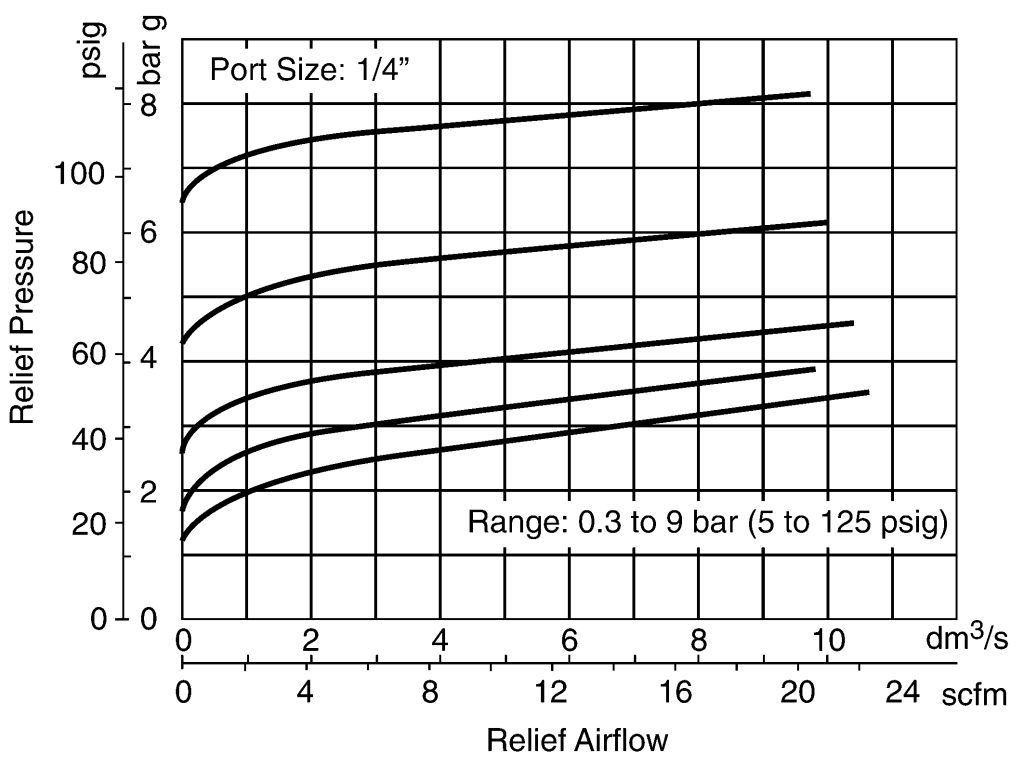

L398911-01LE398911-01LF398911-01

Specifications

Attribute Value
Brand Norgren
Manufacturer Series V07
Body Material Zinc Alloy
Dimensions 75 x 41 mm
Inlet Port Thread Standard G
Width 41 mm
Inlet Port Gender Female
Minimum Operating Temperature -34 °C
Maximum Operating Temperature +65 °C
Minimum Operating Pressure 0.3 bar
Maximum Operating Pressure 9 bar
Inlet Port Size 1/4 in
Height 75 mm
