Microchip LIN Serial Analyzer Development Kit APGDT001
- RS Stock No.:
- 6810960
- Mfr. Prt No.:
- APGDT001
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 6810960 |
| Product description | Microchip LIN Serial Analyzer Development Kit APGDT001 |
| Manufacturer / Brand | Microchip |
| Manufacturer part number | APGDT001 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 6810960 |
| Product description | Microchip LIN Serial Analyzer Development Kit APGDT001 |
| Manufacturer / Brand | Microchip |
| Manufacturer part number | APGDT001 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | May 4, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
LIN Communication - Microchip

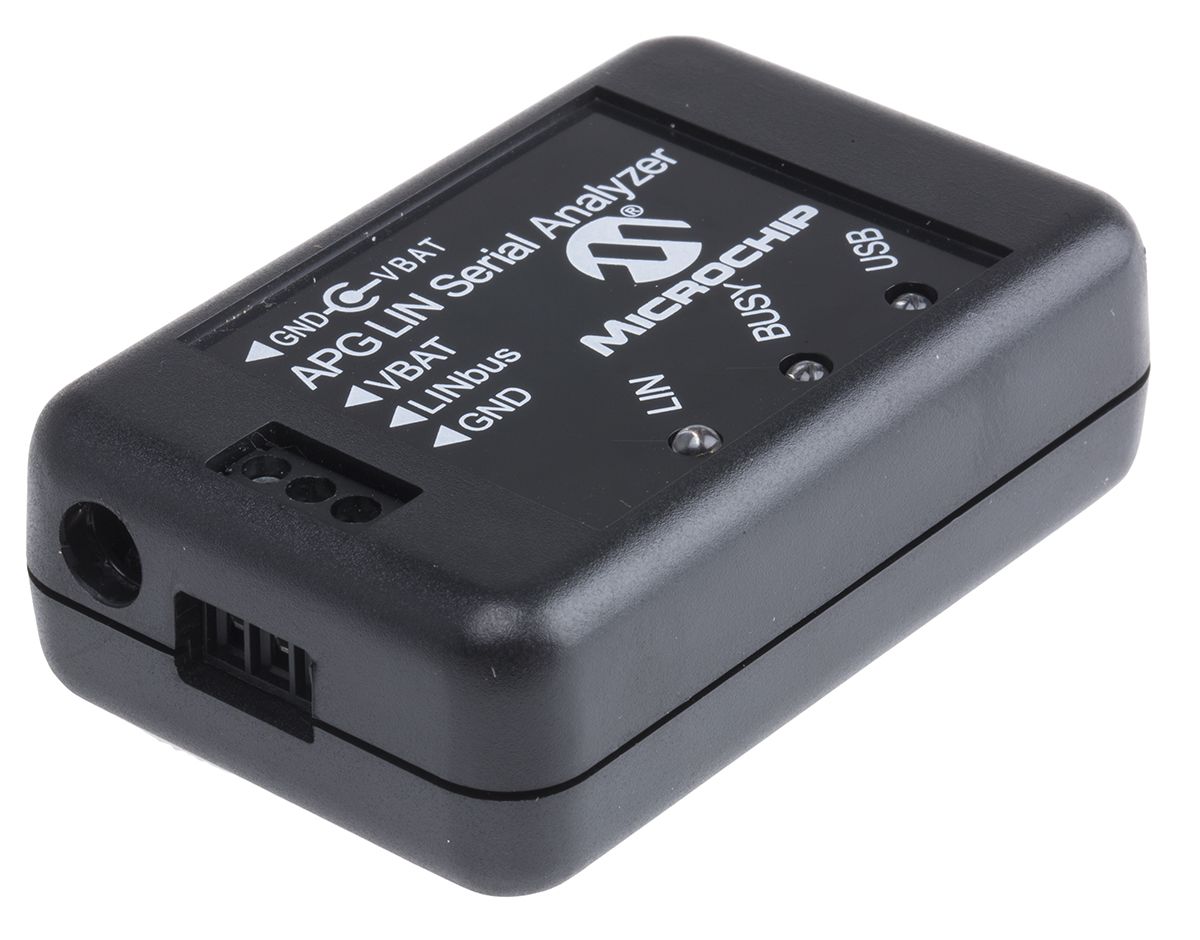

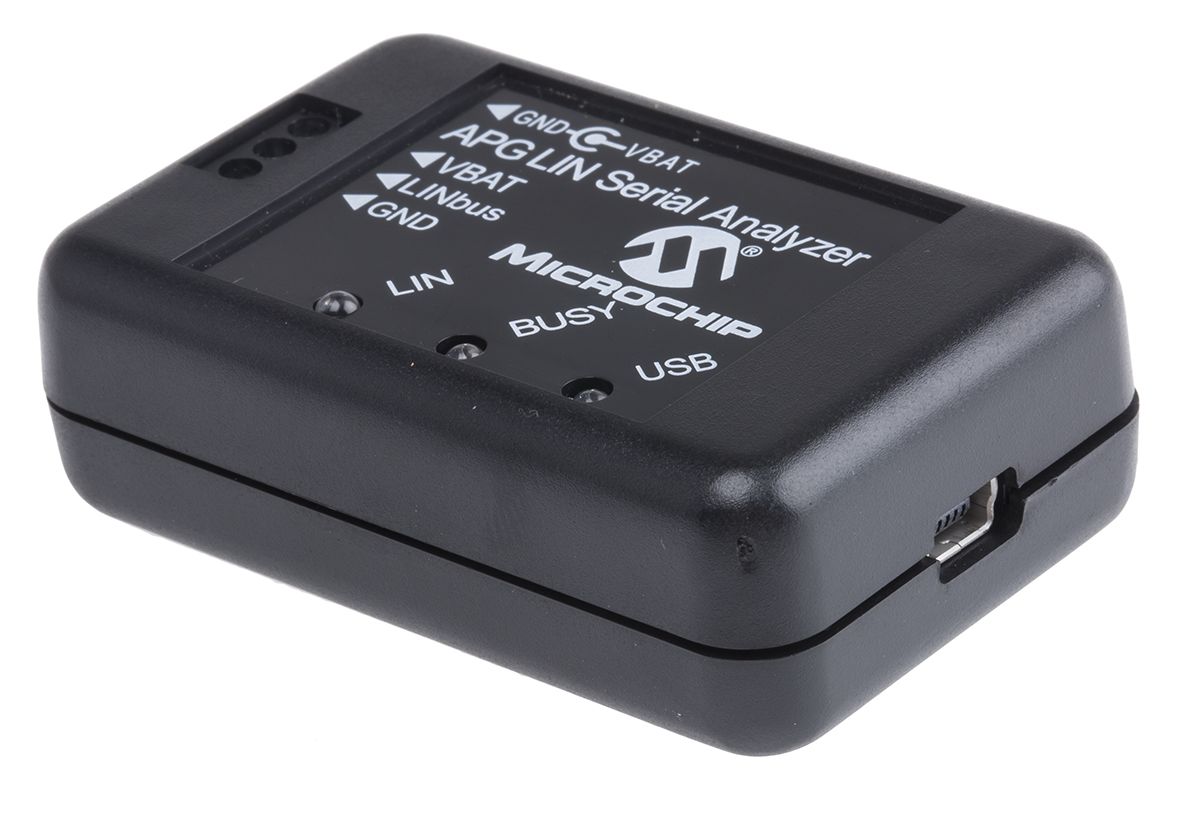

Microchip APGDT001 LIN Serial Analyzer
The Microchip APGDT001 LIN Serial Analyzer is a development tool which connects to your PC and enables it to communicate with a LIN bus. This tool contains various components which work together to provide debugging and analysis functionality.
You can use the LIN Serial Analyzer to send messages, monitor the bus traffic, perform error checks and filter messages.
What’s included?
1 x LIN Serial Analyzer
1 x mini-B USB cable
1 x CD
What is LIN?
LIN, short for Local Interconnect Network, is an affordable serial network, used primarily for communication between devices within cars and other vehicles.
How does it connect?
The LIN Serial Analyzer connects to a PC via the USB cable provided. You will require a PC with a Microsoft Windows operating system and a USB port. The LIN Serial Analyzer sits between your PC and the board that you are testing.
What are the status LEDs for?
There are 3 status LEDs on top of the Microchip LIN Serial Analyzer. A green USB light indicates that power is being supplied from the USB cable. A yellow light marked “Busy” is confirmation that the device is communicating with the LIN network. Finally, there is a blue LED marked “LIN” which confirms that the device is connected to the target bus.
Specifications
| Attribute | Value |
| Brand | Microchip |
| Kit Classification | Development Kit |
| Kit Name | LIN Serial Analyzer |
