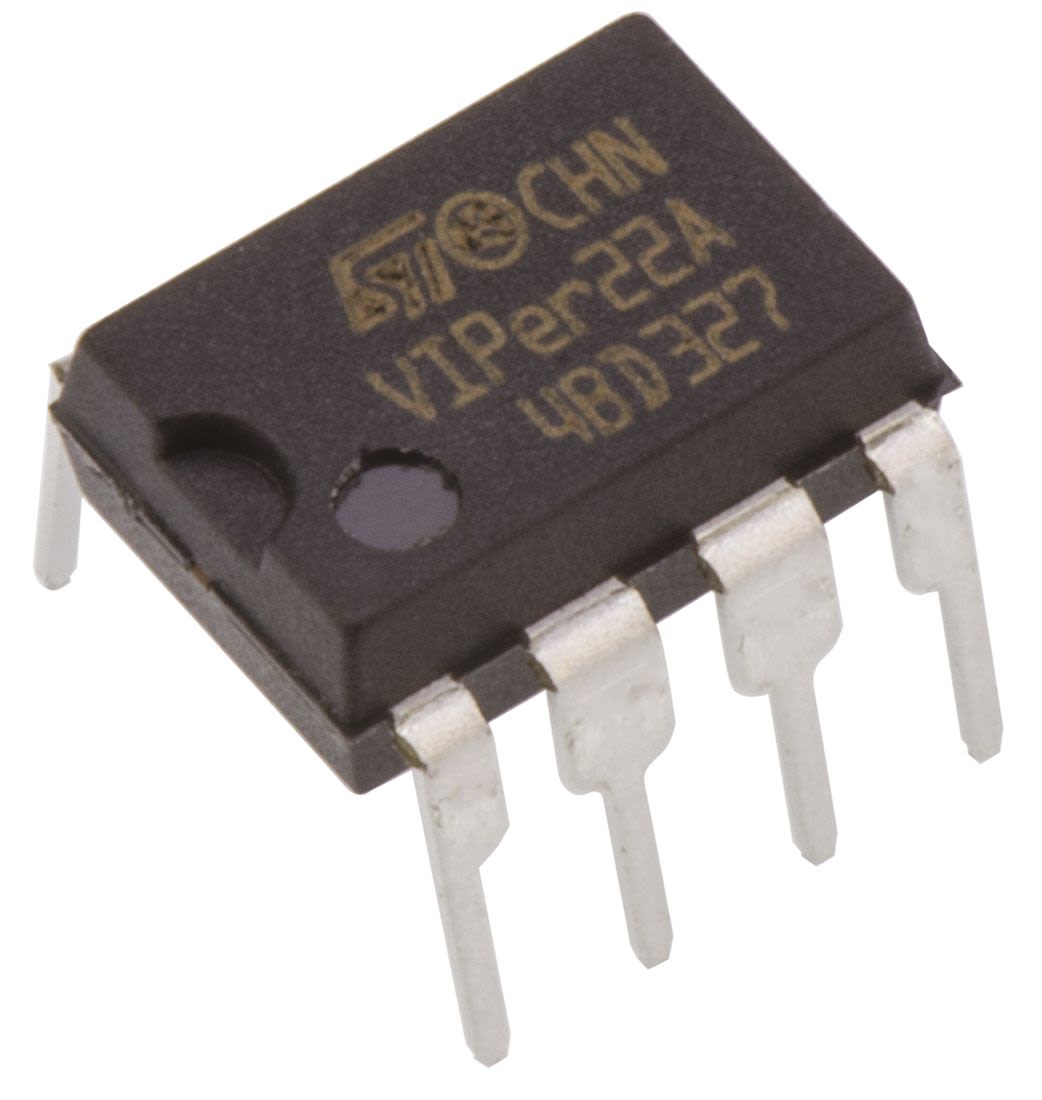

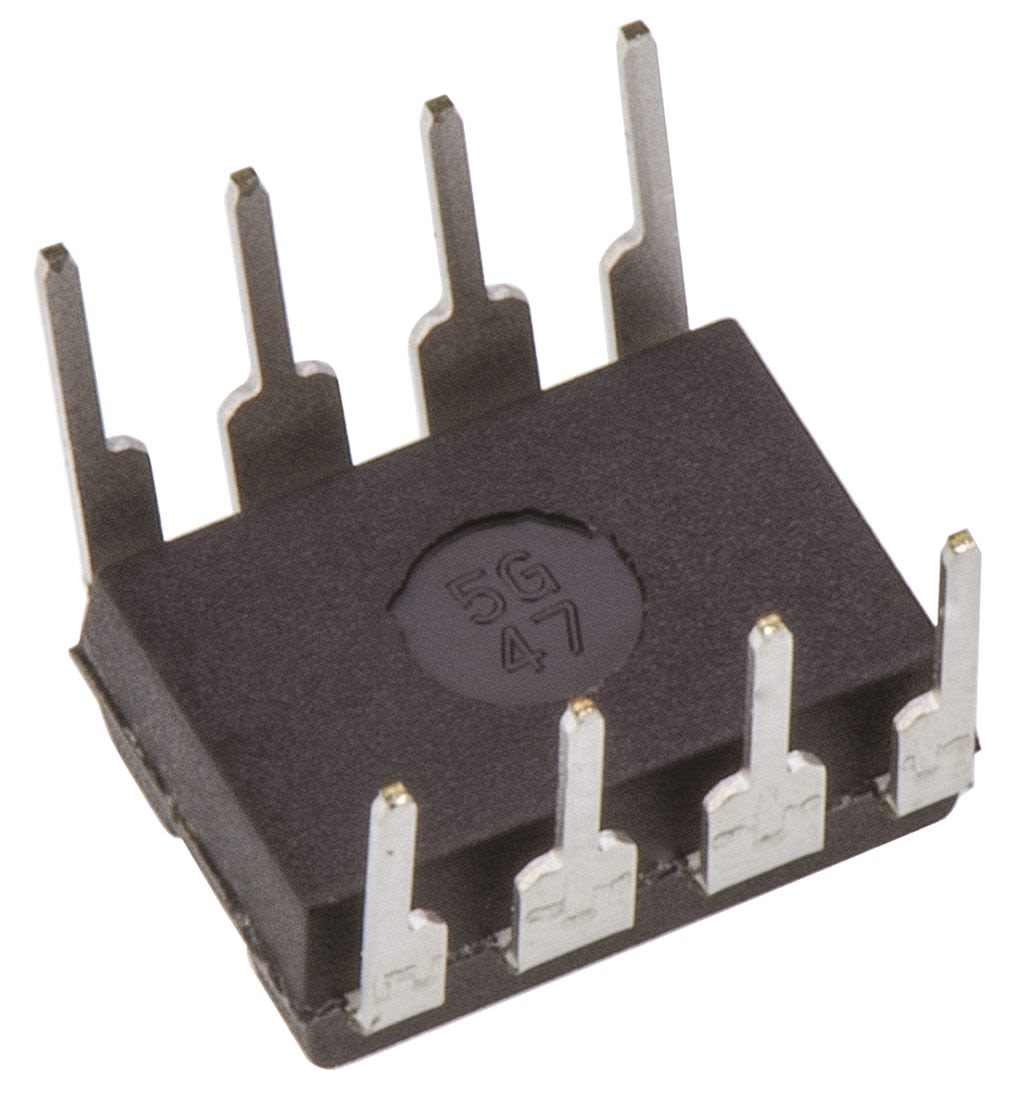

STMicroelectronics VIPER22ADIP-E, PWM Controller, 50 V, 60 kHz 8-Pin, PDIP

RS Stock No.:
0426263
Mfr. Prt No.:
VIPER22ADIP-E
Brand:
STMicroelectronics

Technical Reference

Legislation and Compliance

RoHS Certificate of Compliance

RS Components
RoHS Certificate of Compliance

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.

Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.

RS definition of RoHS Compliance:

  • The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
  • and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

SubstanceConcentration
Lead0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls)0.1%
PBDE ( Polybrominated Diphenyl Ethers)0.1%
Hexavalent Chromium0.1%
Cadmium0.01%
DEHP (Bis (2-Ethylhexl) phthalate)0.1%
BBP (Benzyl butyl phthalate)0.1%
DBP (Dibutyl phthalate)0.1%
DIBP (Diisobutyl phthalate)0.1%

The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".

RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.

Compliant Product Details
RS stock number 0426263
Product description STMicroelectronics VIPER22ADIP-E, PWM Controller, 50 V, 60 kHz 8-Pin, PDIP
Manufacturer / Brand STMicroelectronics
Manufacturer part number VIPER22ADIP-E

RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 0426263
Product description STMicroelectronics VIPER22ADIP-E, PWM Controller, 50 V, 60 kHz 8-Pin, PDIP
Manufacturer / Brand STMicroelectronics
Manufacturer part number VIPER22ADIP-E

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Mar 29, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132


Product Details

AC/DC Converters, STMicroelectronics

VIPer® High-Voltage Off-Line Converters, STMicroelectronics

VIPer® high-voltage converters from the mains voltage (230VAC) are fixed frequency offline converter ICs, integrating a PWM controller and a 700V vertical power MOSFET.
Typical applications cover offline power supplies. They are compatible from either the primary side or the secondary side regulation loop.


Specifications

Attribute Value
Brand STMicroelectronics
Maximum Switching Frequency 60 kHz
Output Voltage 730 V
Control Method Current
Mounting Type Through Hole
Fall Time 100 ns
Package Type PDIP
Rise Time 50 ns
Pin Count 8
Topology Forward
Maximum Duty Cycle 16 %
Dimensions 10.16 x 7.11 x 4.95 mm
Length 10.16 mm
PWM Controller Type Current Mode
Width 7.11 mm
Height 4.95 mm
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +150 °C
Maximum Operating Supply Voltage 50 V
Minimum Operating Supply Voltage 0 V
