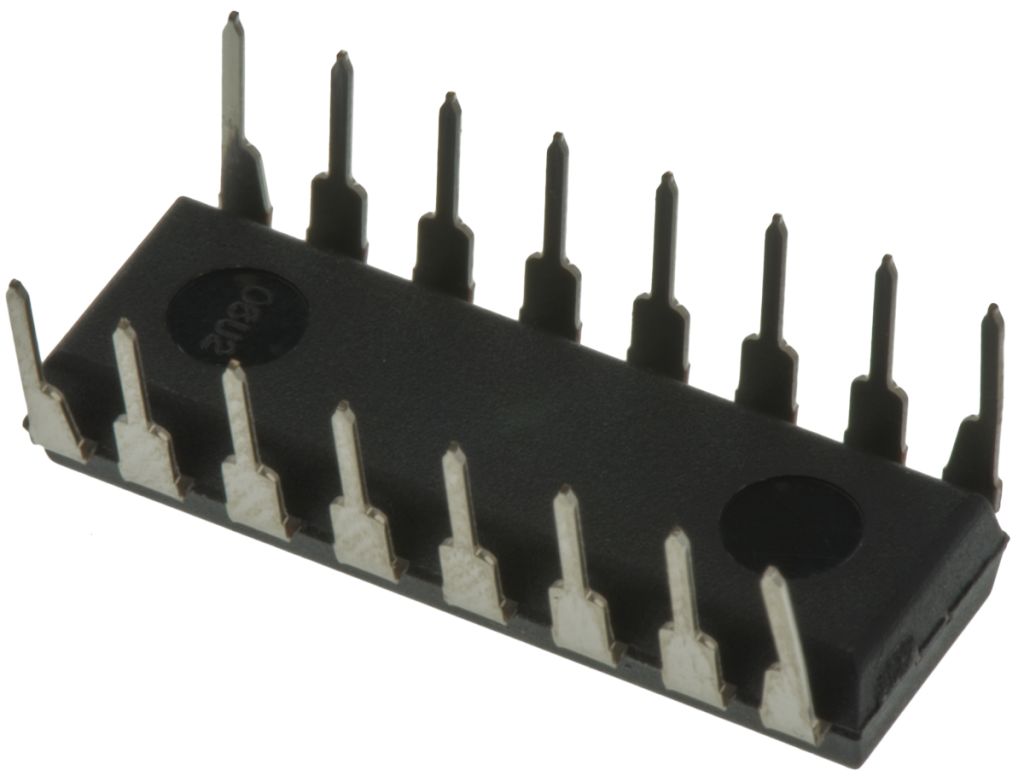

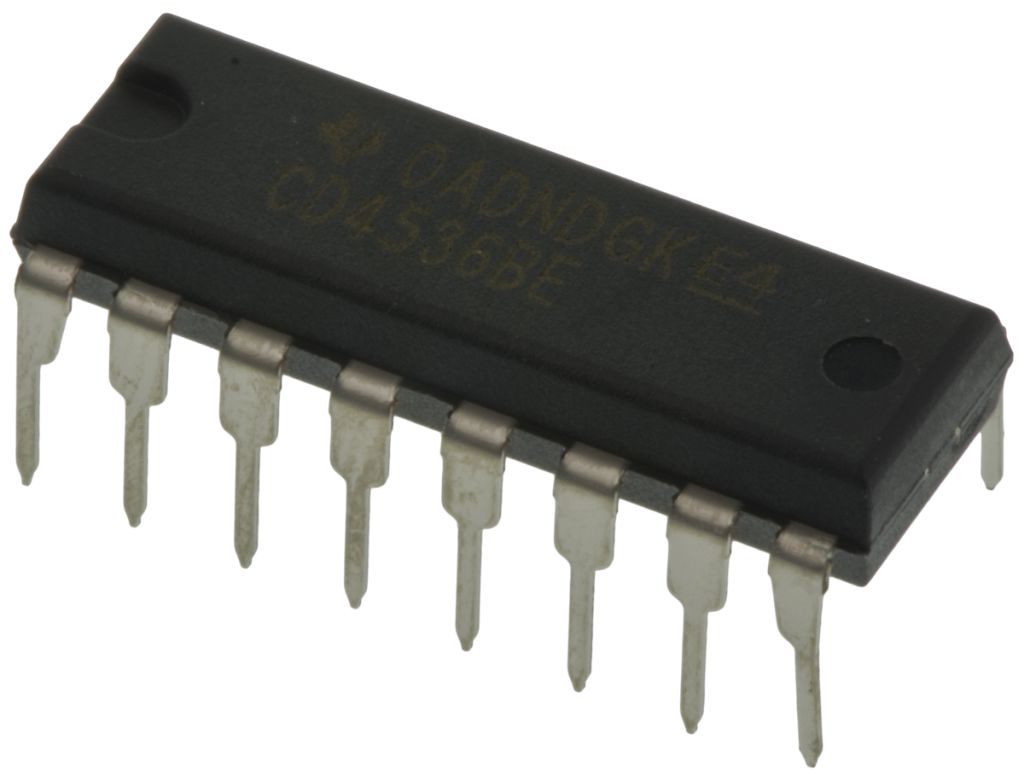

Texas Instruments CD4536BEE4, Programmable Timer Circuit, 16-Pin PDIP

RS Stock No.:
7092532
Mfr. Prt No.:
CD4536BE
Brand:
Texas Instruments

Legislation and Compliance

RoHS Certificate of Compliance

RS Components
RoHS Certificate of Compliance

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.

Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.

RS definition of RoHS Compliance:

  • The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
  • and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

SubstanceConcentration
Lead0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls)0.1%
PBDE ( Polybrominated Diphenyl Ethers)0.1%
Hexavalent Chromium0.1%
Cadmium0.01%
DEHP (Bis (2-Ethylhexl) phthalate)0.1%
BBP (Benzyl butyl phthalate)0.1%
DBP (Dibutyl phthalate)0.1%
DIBP (Diisobutyl phthalate)0.1%

The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".

RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.

Compliant Product Details
RS stock number 7092532
Product description Texas Instruments CD4536BEE4, Programmable Timer Circuit, 16-Pin PDIP
Manufacturer / Brand Texas Instruments
Manufacturer part number CD4536BE

RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 7092532
Product description Texas Instruments CD4536BEE4, Programmable Timer Circuit, 16-Pin PDIP
Manufacturer / Brand Texas Instruments
Manufacturer part number CD4536BE

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Mar 29, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132


Product Details

4000 CMOS Logic Family, Texas Instruments

4000 Series Multivibrators & Timers, Texas Instruments

Texas Instruments range of Monstable/Astable Multivibrators and Programmable Timers from the 4000 Series CMOS Logic Family

CMOS Family devices
Wide operating voltage range: 3 to 18V


Specifications

Attribute Value
Brand Texas Instruments
Mounting Type Through Hole
Timer Type Programmable
Package Type PDIP
Number of Internal Timers 1
Pin Count 16
Minimum Operating Supply Voltage 3 V
Maximum Operating Supply Voltage 18 V
Minimum Operating Temperature -55 °C
Maximum Operating Temperature +125 °C
Maximum Quiescent Current 0.1 mA
Maximum Low Level Output Current 4.2 mA
Maximum High Level Output Current -4.2 mA
Maximum Propagation Delay Time @ Maximum CL 8000 ns@ 5 V
Length 19.3 mm
Height 4.57 mm
Width 6.35 mm
Dimensions 19.3 x 6.35 x 4.57 mm
