RS PRO RTD Sensor, 30mm Long, Patch Sensor, +150°C Max
- RS Stock No.:
- 7887132
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 7887132 |
| Product description | RS PRO RTD Sensor, 30mm Long, Patch Sensor, +150°C Max |
| Manufacturer / Brand | RS PRO |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 7887132 |
| Product description | RS PRO RTD Sensor, 30mm Long, Patch Sensor, +150°C Max |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Apr 27, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: GB
Product Details
RS PRO PT100 Sensor

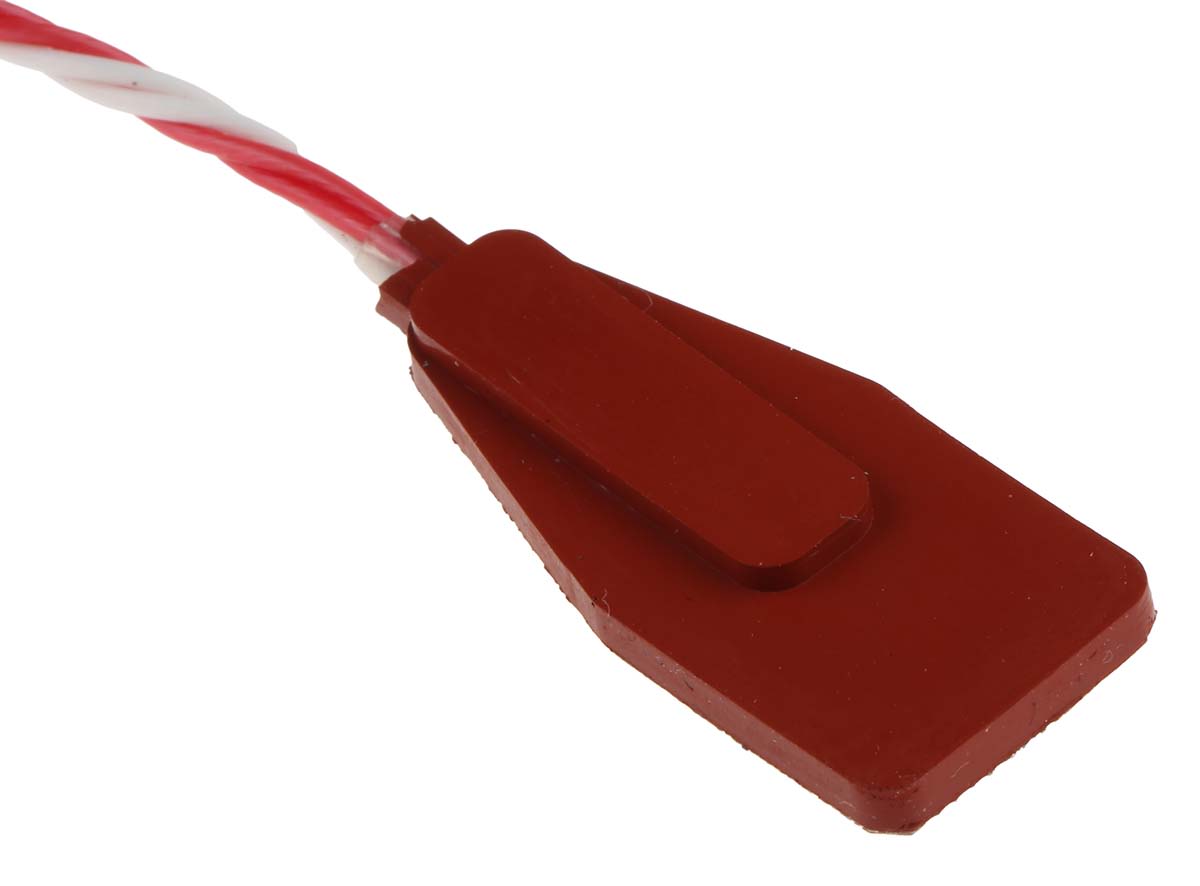

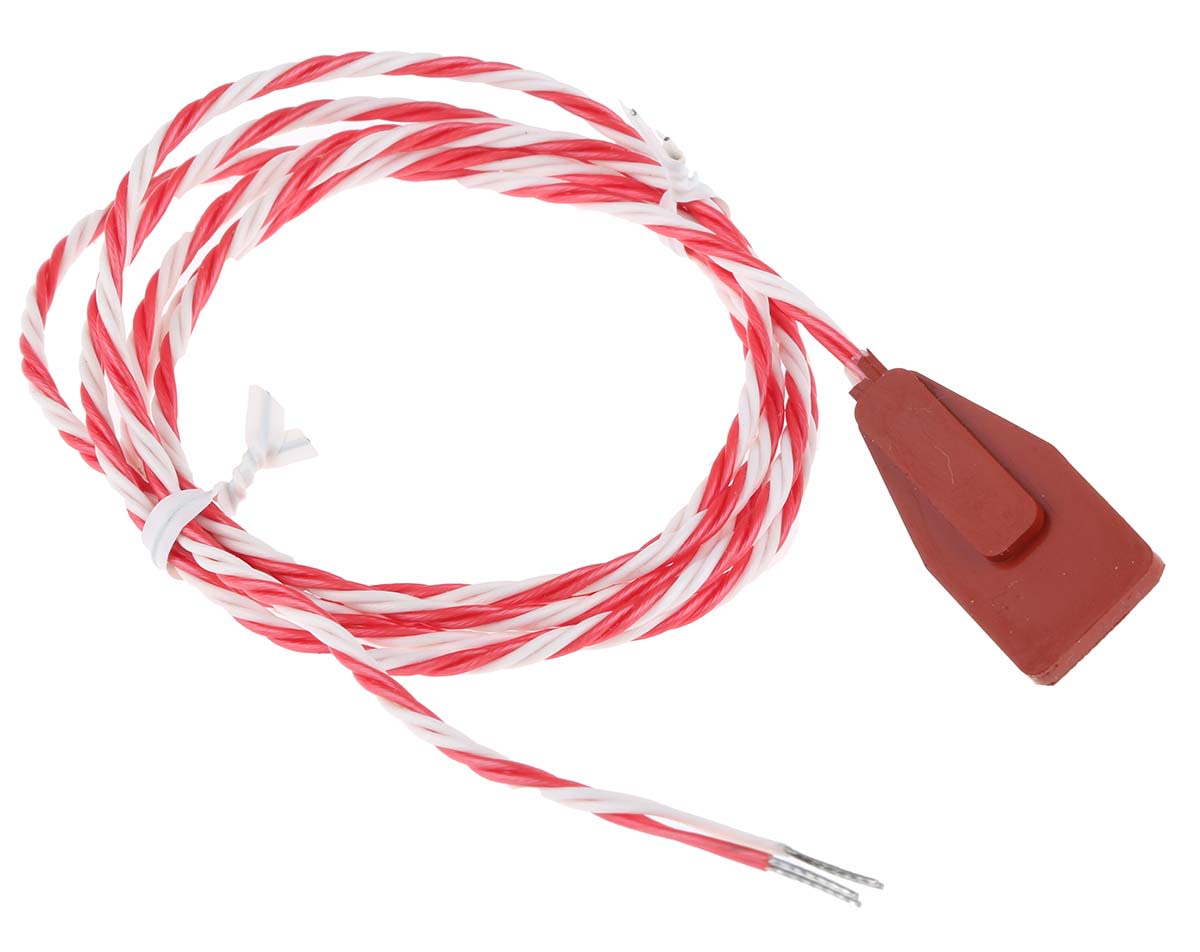

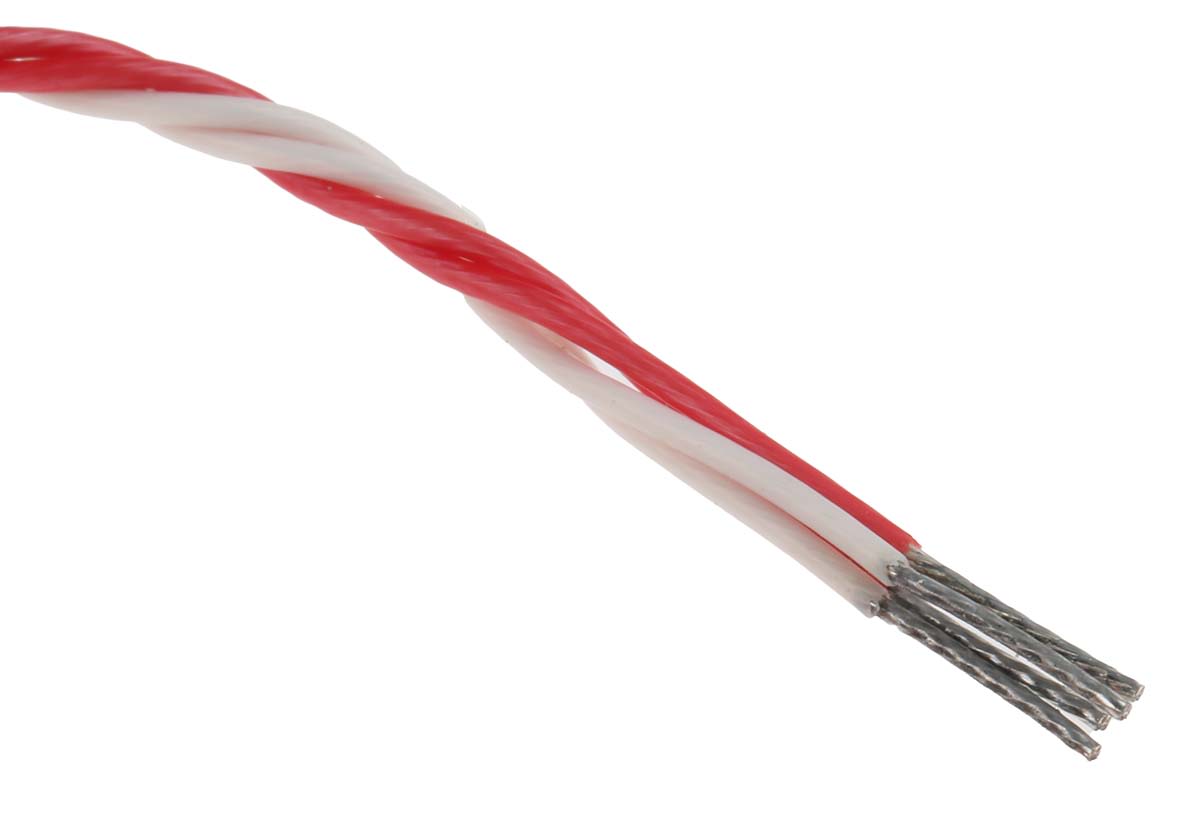

From RS PRO, comes a great value PT100 sensor. The construction of this sensor consists of 1m tinned copper silicon cable and a PT100 sensing tip moulded within a silicon patch.
The silicon patch that is featured on this sensor is also fitted with an adhesive foil backing which enables it fixed to surfaces
With all the features included in this sensor, it proves to be an excellent solution in the measure of temperature across a range of applications.
Features and benefits:
- The sensor has good resistance to oils and chemicals
- Response time of 7mins
- Maximum operating temperature of 150°C
- The sensor comes fitted with a mini connector
Applications
This sensor has a variety of application use such as;
- Process industry
- Laboratories
- Industrial.
- Ideal for measuring the temperature of tyres
What is a PT100 sensor?
PT100 sensors are a type of resistance thermometer. The PT in the name refers to the sensor which is constructed from platinum and the 100 refers to the fact at 0°C the sensor has a resistance of 100 ohms.
Why choose RS PRO?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Thermocouple Type | PT 100 |
| Cable Length | 1 m, 1 mm |
| Probe Length | 30 mm |
| Maximum Temperature Sensed | +150 °C |
| Process Connection | Patch Sensor |
