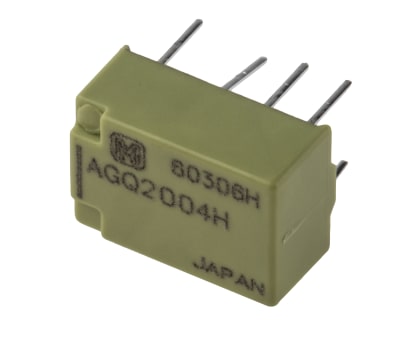

Panasonic DPDT Non-Latching Relay PCB Mount, 4.5V dc Coil

RS Stock No.:
3992564
Mfr. Prt No.:
AGQ2004H
Brand:
Panasonic

Technical Reference

Legislation and Compliance

RoHS Certificate of Compliance

RS Components
RoHS Certificate of Compliance

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.

Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.

RS definition of RoHS Compliance:

  • The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
  • and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

SubstanceConcentration
Lead0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls)0.1%
PBDE ( Polybrominated Diphenyl Ethers)0.1%
Hexavalent Chromium0.1%
Cadmium0.01%
DEHP (Bis (2-Ethylhexl) phthalate)0.1%
BBP (Benzyl butyl phthalate)0.1%
DBP (Dibutyl phthalate)0.1%
DIBP (Diisobutyl phthalate)0.1%

The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".

RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.

Compliant Product Details
RS stock number 3992564
Product description Panasonic DPDT Non-Latching Relay PCB Mount, 4.5V dc Coil
Manufacturer / Brand Panasonic
Manufacturer part number AGQ2004H

RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 3992564
Product description Panasonic DPDT Non-Latching Relay PCB Mount, 4.5V dc Coil
Manufacturer / Brand Panasonic
Manufacturer part number AGQ2004H

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Jul 25, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: JP


Product Details

Miniature relays - AGQ Series

APPROVALS : UL, CSA

LF399256-01

Specifications

Attribute Value
Brand Panasonic
Coil Voltage 4.5 V dc
Contact Configuration DPDT
Mounting Type PCB Mount
Terminal Type Through Hole
Coil Resistance 145 Ω
Application General Purpose
Length 10.6 mm
Depth 7.2 mm
Height 5.2 mm
Dimensions 10.6 x 7.2 x 5.2 mm
Minimum Operating Temperature -40 °C
Maximum Switching Power AC 37.5 VA
Contact Material Silver Alloy
Maximum Switching Power DC 30 W
Operating Temperature Range -40 → +85 °C
Maximum Operating Temperature +85 °C
Checking stock...
IDR
59,472.63
Out of stock
Price Each
Unit(s)Per Unit(IDR)
159,472.63
*price per unit indicative
